Peristaltic Pump Tubing

Products

Home

Pump Tubing

/

/

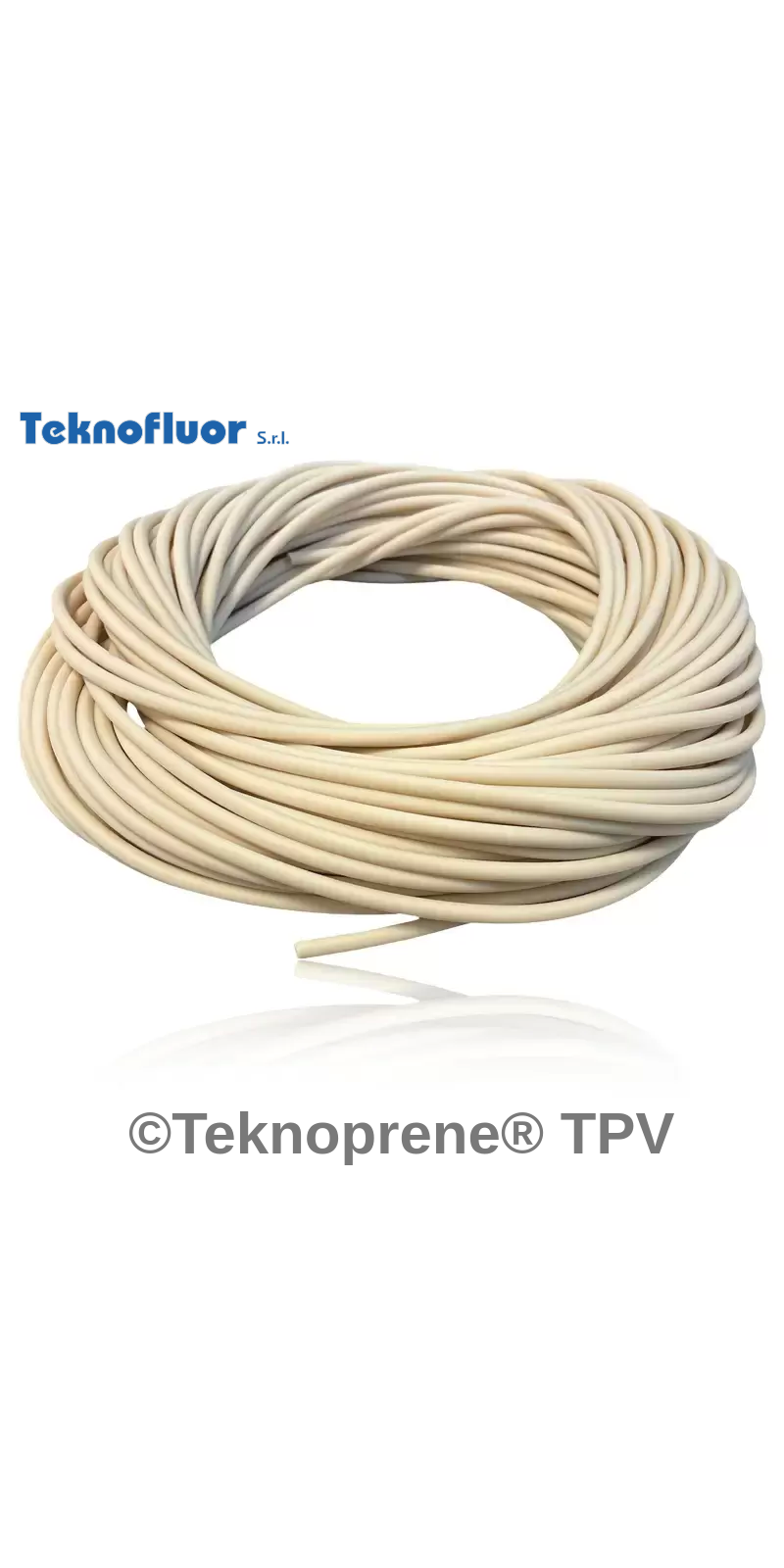

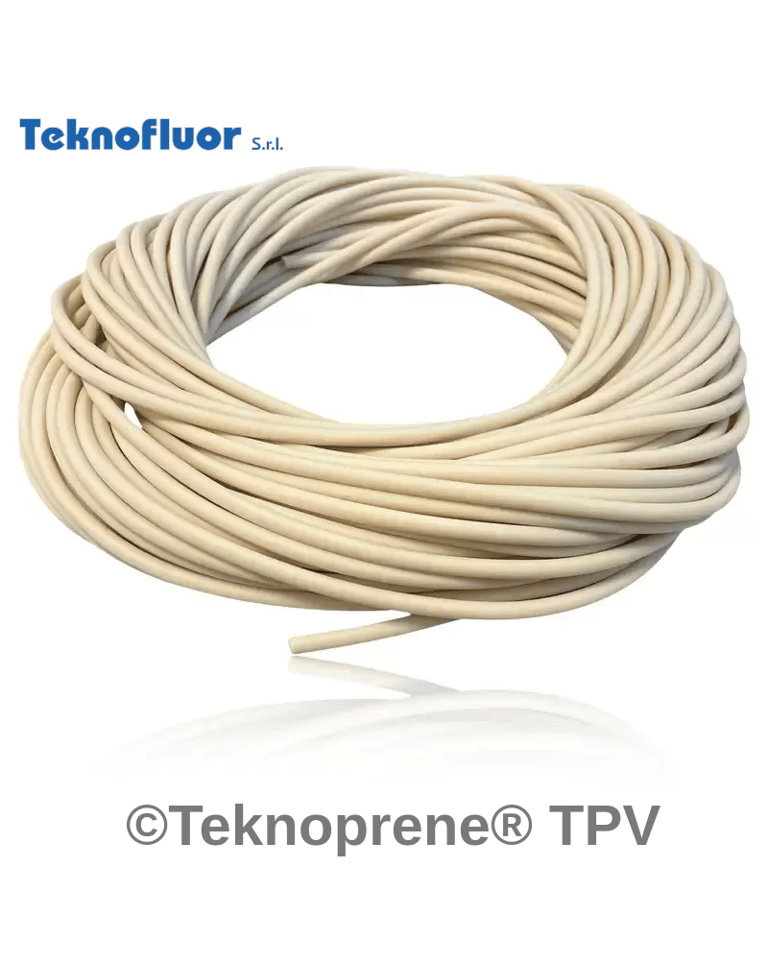

Teknoprene® TPV

SANT64AL

Technical Specification

Explore our comprehensive product specifications for peristaltic pump tubing and gain a deeper technical understanding of the key factors to consider when selecting the ideal peristaltic pump tube for your application.

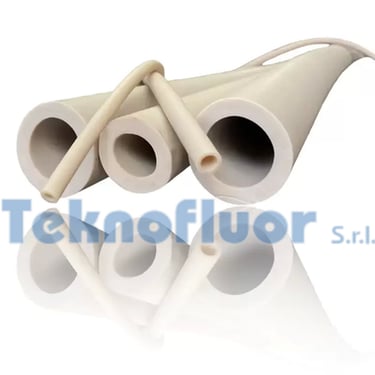

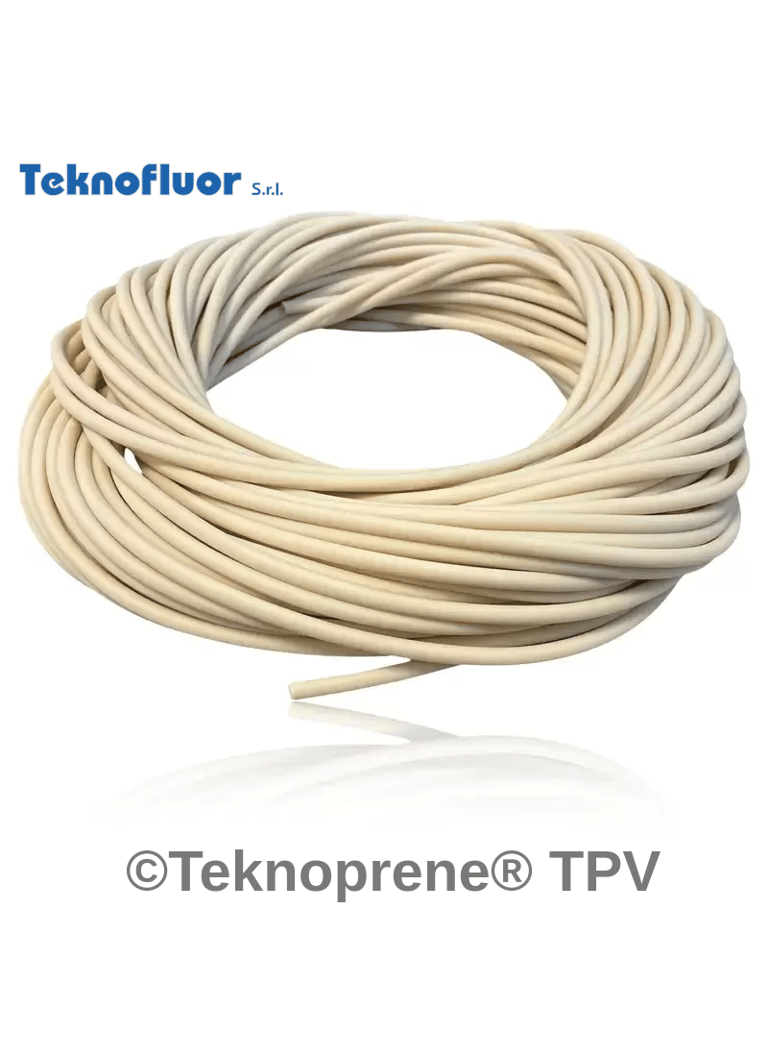

Teknoprene® TPV: ideal for peristaltic pumps, for the transfer and dosing of acids and alkalis, even if they contain impurities or foaming agents.

Teknoprene® TPV tubes for peristaltic pumps: Designed for the transfer and dosing of acids and bases, even with impurities or foaming agents. These tubes are widely used not only in the chemical industry but also in water and waste treatment processes, ensuring resistance and durability. They are ideal for industrial plants requiring reliability in transporting complex chemical fluids.

STANDARD GRADE: TEKNOPRENE® TPV (SANT64AL) - hardness: 64 Sh. A - colour: natural (beige) - FDA standards approved.

ON REQUEST: hardness: 45, 55, 73, 80, 87 Sh. A - colour: black or RAL colours.

Application sectors

• Retains properties from -40°C to +120°C

• Resistant to ozone, UV radiation, water, acids, oils, greases, and more

• Sterilizable with both steam and ethylene oxide

• Maintains performance even after extended periods of compression

• Approved for food contact according to international standards (documentation available upon request)

• Tube walls remain separated, even after prolonged inactivity of the machine

Teknoprene® TPV for peristaltic pumps are manufactured by a new production line equipped with a laser device to control the dimensions. We can supply products with very close tolerances in dimensions.

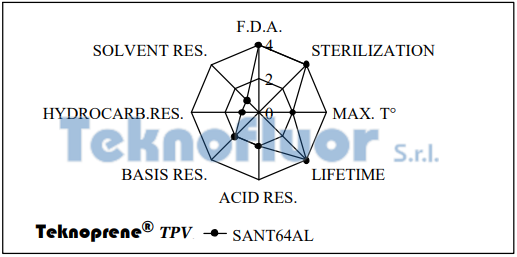

Teknoprene® TPV special features:

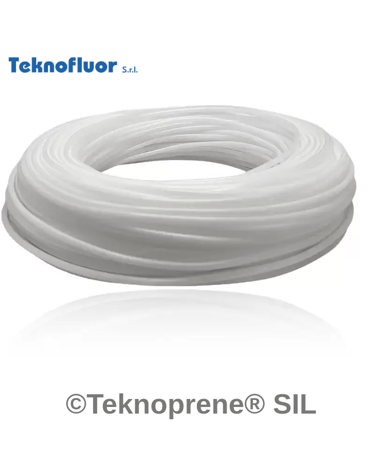

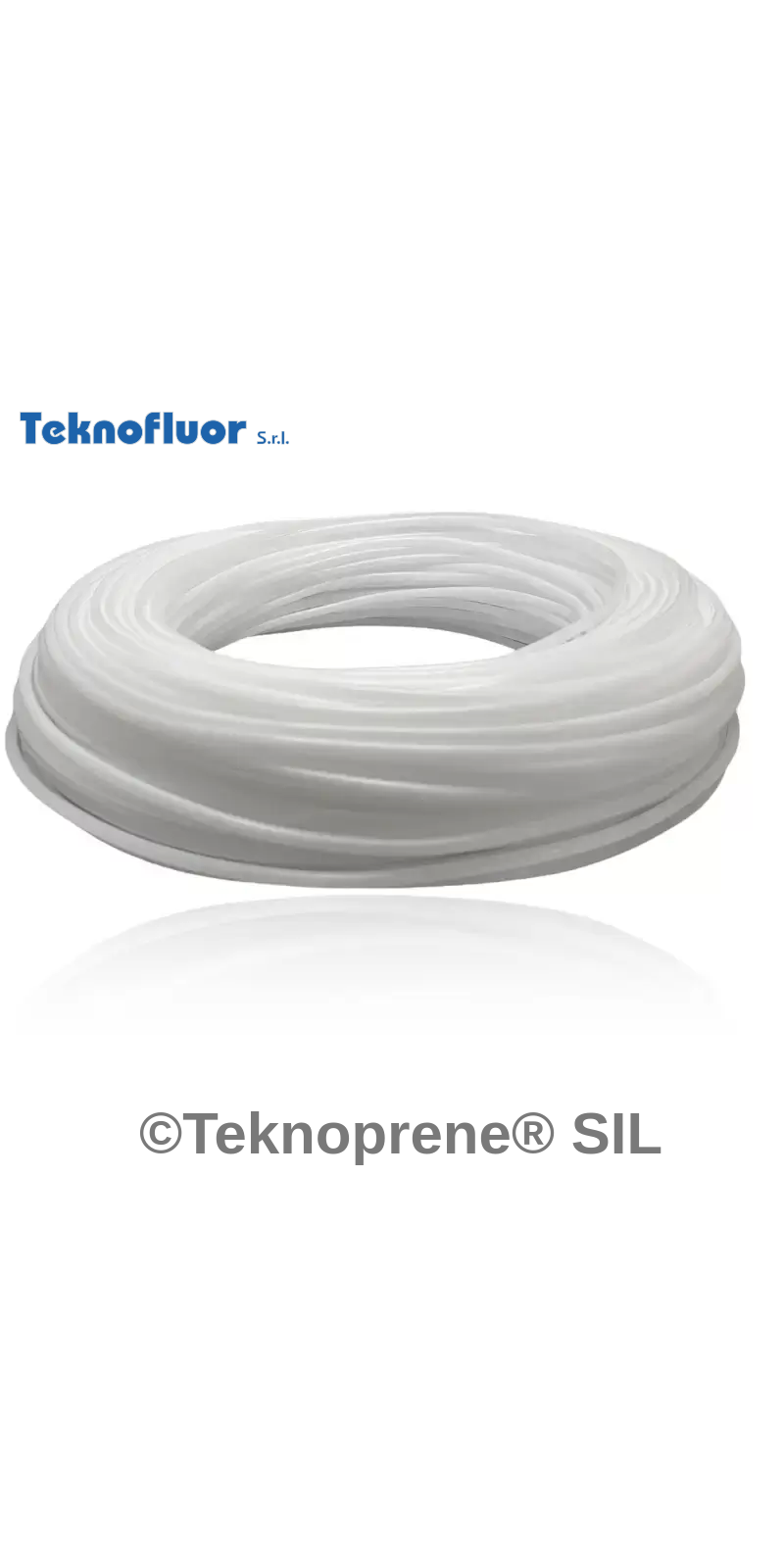

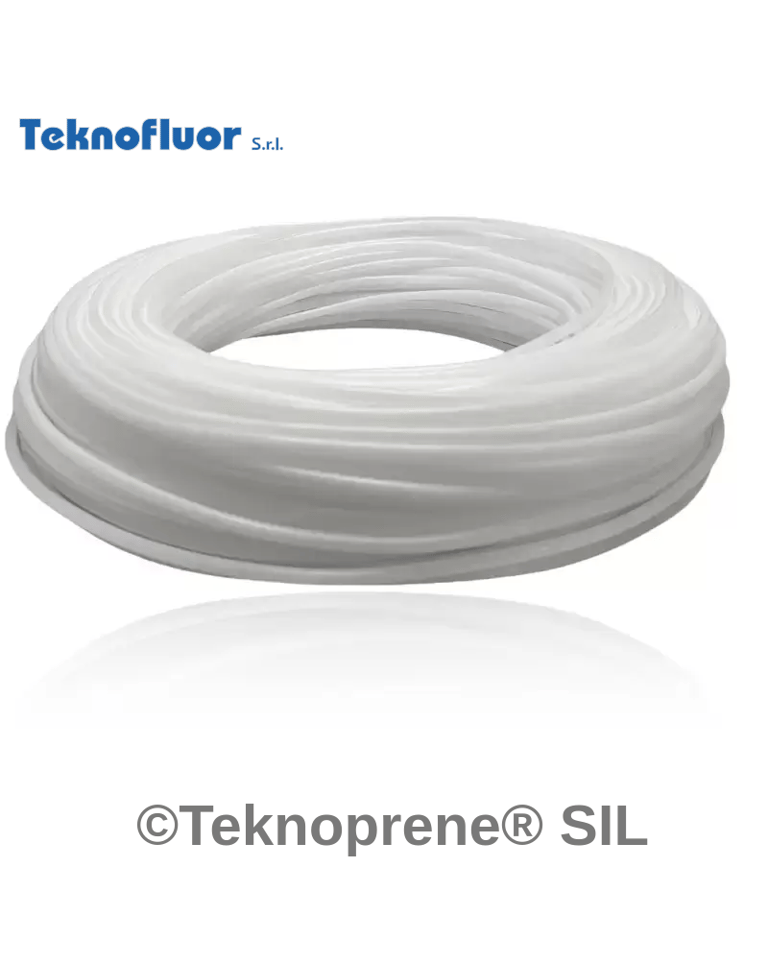

Teknoprene® SIL

SIL60TR

Technical Specification

Explore our comprehensive product specifications for peristaltic pump tubing and gain a deeper technical understanding of the key factors to consider when selecting the ideal peristaltic pump tube for your application.

Teknoprene® SIL: ideal for pumping and handling of delicate liquids, food and pharmaceuticals

Teknoprene® SIL tubes for the food, pharmaceutical, and air treatment industries: Perfect for pumping and handling delicate liquids such as food and pharmaceuticals, ensuring safety and compliance with food regulations. Also used in air treatment and filtration systems to transport delicate fluids without altering their characteristics, Teknoprene® SIL tubes are ideal for applications requiring sterility and hygiene.

STANDARD GRADE: Teknoprene® SIL (SIL60 TR P) - hardness: 60 Sh. A - colour: transparent - FDA standards approved.

ON REQUEST: hardness: 40, 50, 70, 80 Sh. A - colour: RAL colours.

Application sectors

• Retains qualities from -40°C to +180°C

• Resistant to ozone, solar radiation, water (cold and hot), acids, oily liquids, greases, and more

• Can be sterilized with both steam and ethylene oxide

• Maintains properties even after extended compression

• Approved for food contact according to international standards (documentation available upon request)

Teknoprene® SIL (silicone rubber) are made of a brand new Silicone in order to fit the most difficoult working conditions (squashing, chemicals,...).

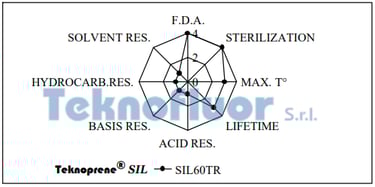

Teknoprene® SIL special features:

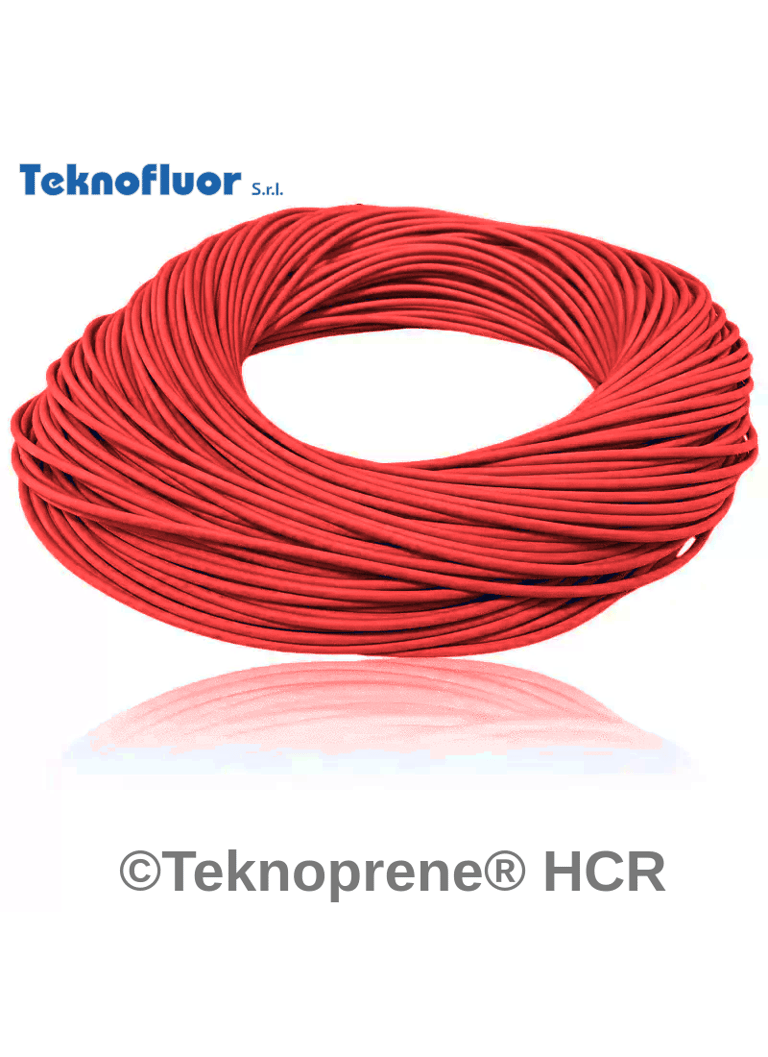

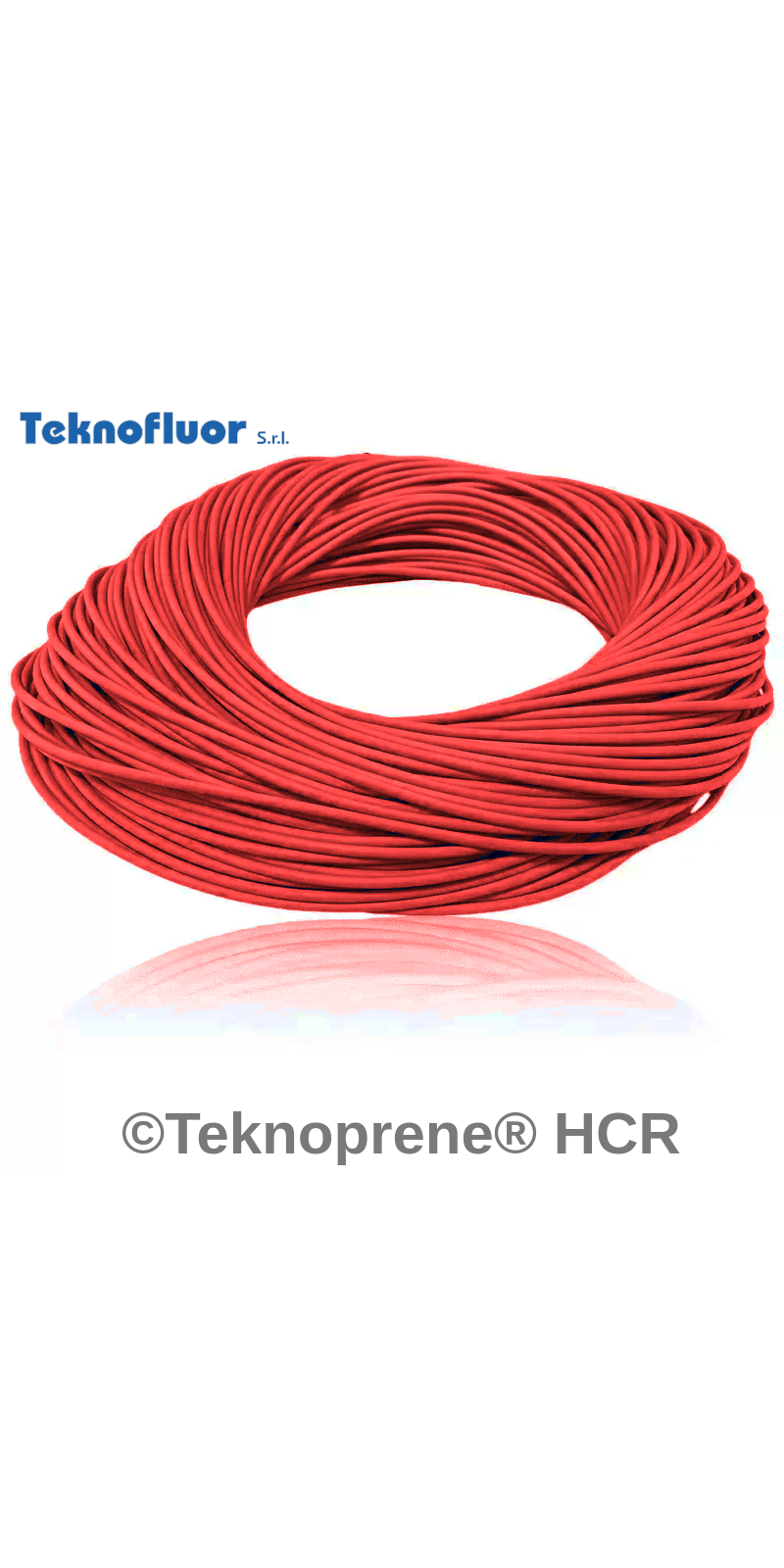

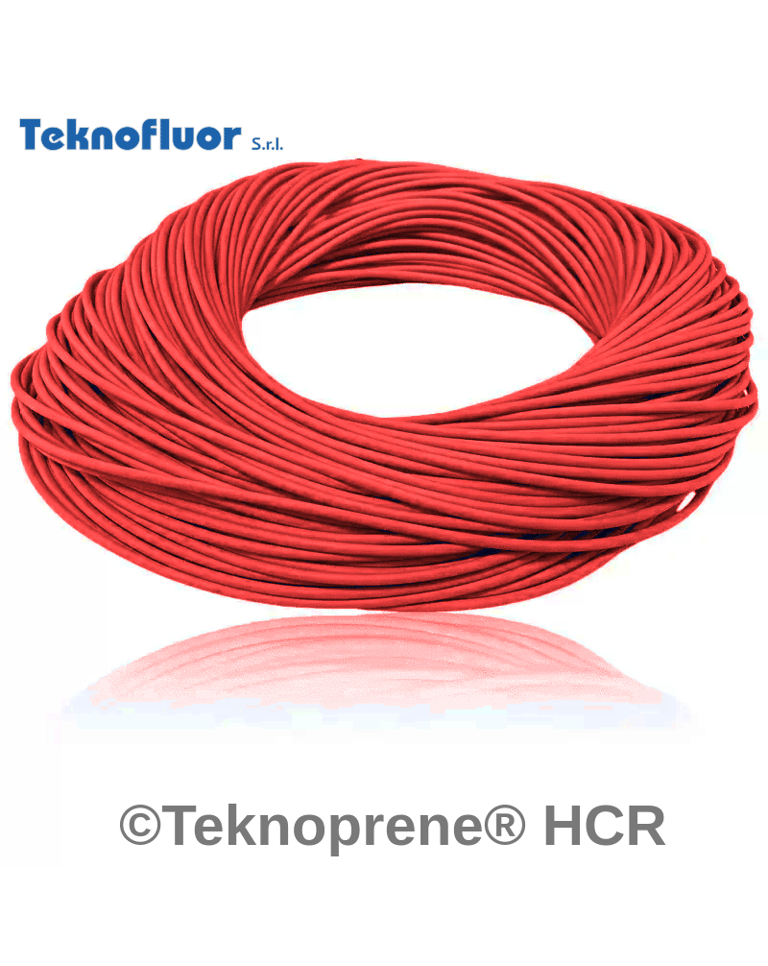

Teknoprene® HCR

TEK HCR

Technical Specification

Explore our comprehensive product specifications for peristaltic pump tubing and gain a deeper technical understanding of the key factors to consider when selecting the ideal peristaltic pump tube for your application.

Teknoprene® HCR: ideal for peristaltic pumps, for the transfer of aggressive liquids such as hydrocarbons and acids.

Teknoprene® HCR tubes for the transport of aggressive liquids and industrial applications: Designed for the transfer of aggressive chemical liquids such as hydrocarbons and acids, these tubes are ideal for chemical, petrochemical industries, and industrial production systems. They are used in air treatment plants and production processes where resistance to corrosive fluids is crucial, ensuring safety and operational efficiency.

STANDARD GRADE: Teknoprene® HCR - hardness: 60 Sh. A - colour: red.

ON REQUEST: hardness: 50 Sh. A - colour: RAL colours.

Application sectors

• Retains qualities from -60°C to +180°C

• Resistant to ozone, solar radiation, water (cold and hot), acids, oils, greases, hydrocarbons, fuel, and more

• Can be sterilized with both steam and ethylene oxide

• Maintains properties even after extended compression

Teknoprene® HCR tubings for peristaltic pumps are manufactured with a brand new elastomer in order to fit the most difficoult working conditions (quashing, chemicals,...).

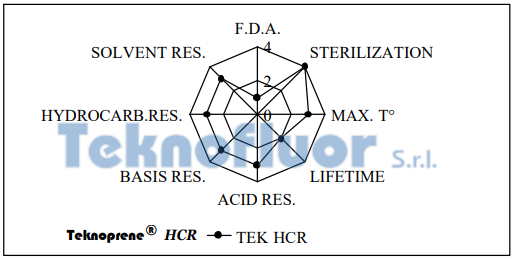

Teknoprene® HCR special features:

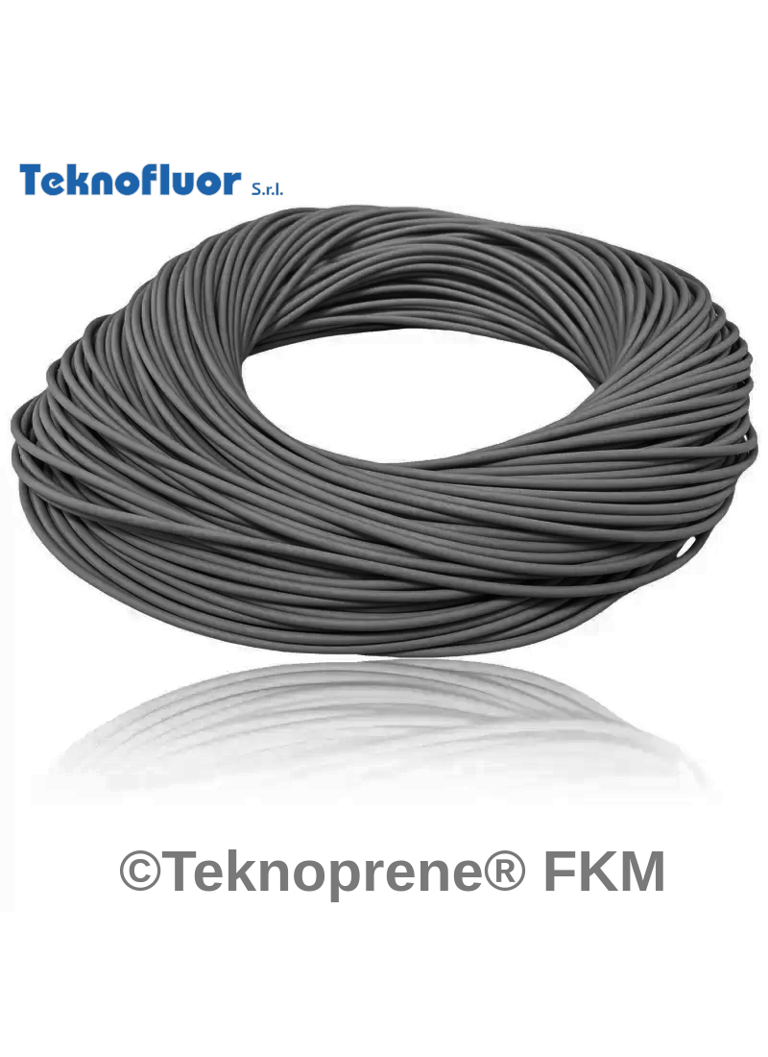

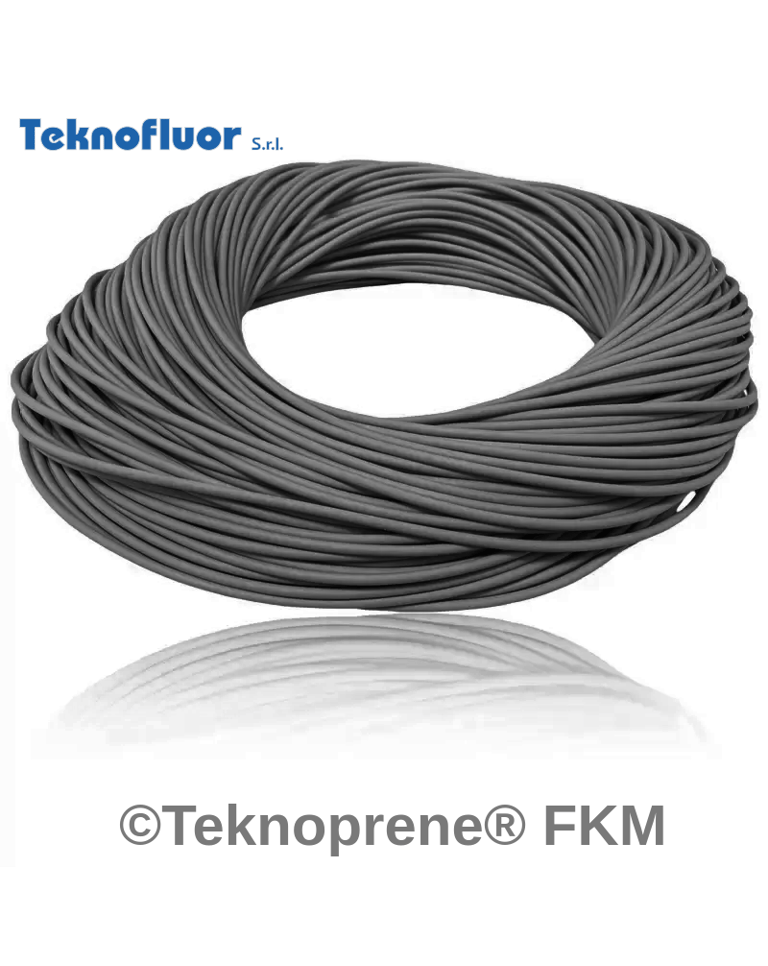

Teknoprene® FKM

FKM

Technical Specification

Explore our comprehensive product specifications for peristaltic pump tubing and gain a deeper technical understanding of the key factors to consider when selecting the ideal peristaltic pump tube for your application.

Teknoprene® FKM: ideal for peristaltic pumps, dosing of very aggressive liquids such as hydrocarbons, solvents, ketones, acids and concentrated bases.

Teknoprene® FKM tubes for extremely aggressive liquids and specialized industries: Ideal for the dosing of solvents, ketones, hydrocarbons, and concentrated acids and bases, Teknoprene® FKM tubes offer exceptional resistance to highly aggressive fluids. They are used in chemical industries, laboratories, and sectors requiring extreme resistance and safety, delivering excellent performance in complex production systems, including cooling systems and high-pressure circuits.

STANDARD GRADE: Teknoprene® FKM - fluorelastomer - hardness: 70 Sh. A - colour: black.

ON REQUEST: hardness: 60, 80 Sh. A - colour: green, brown.

Application sectors

• Retains qualities from -25°C to +260°C

• Resistant to ozone, solar radiation, water (cold and hot), acids, oils, greases, hydrocarbons, fuel, and more

• Can be sterilized with both steam and ethylene oxide

Teknoprene® FKM tubes fit for aggressive chemicals. Above all, it is the real Teknoprene® FKM (fluorelastomer)-substitute, mantaining the typical Teknoprene® SIL and Teknoprene® TPV rubber flexibility.

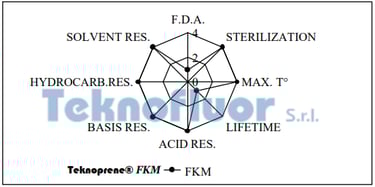

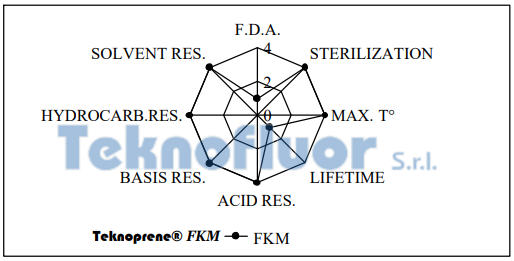

Teknoprene® FKM incomparable features:
