Micromix: Your Local Partner for Espango Peristaltic Pumps

Espango, part of the Teknofluor group, specialises in the design and production of peristaltic dosing pumps. The pumps cover a wide range of requirements, offering effective solutions for micro-dosing and large-volume liquid transfers.

Peristaltic metering pumps

Versatility and customisation

Each peristaltic pump is adapted to specific customer projects, modifying our basic models to meet the needs of the application. The versatility of the pumps, coupled with an always available stock, allows fast delivery times even for small batches or individual parts.

IPCS – IPCR RANGE

Industrial OEM Equipment

Production of closed-case pumps with fixed or variable flow rates, designed to meet specific IP protection class standards for enhanced reliability and durability.

• Flow rate from 0,05 l/h to 200 l/h, also adjustable

• Standard pressure 1 Bar

• Reversible or one-way flow

• Self-priming

• Standard 24V and 230V motors

IPCS - IPCR Peristaltic Pumps

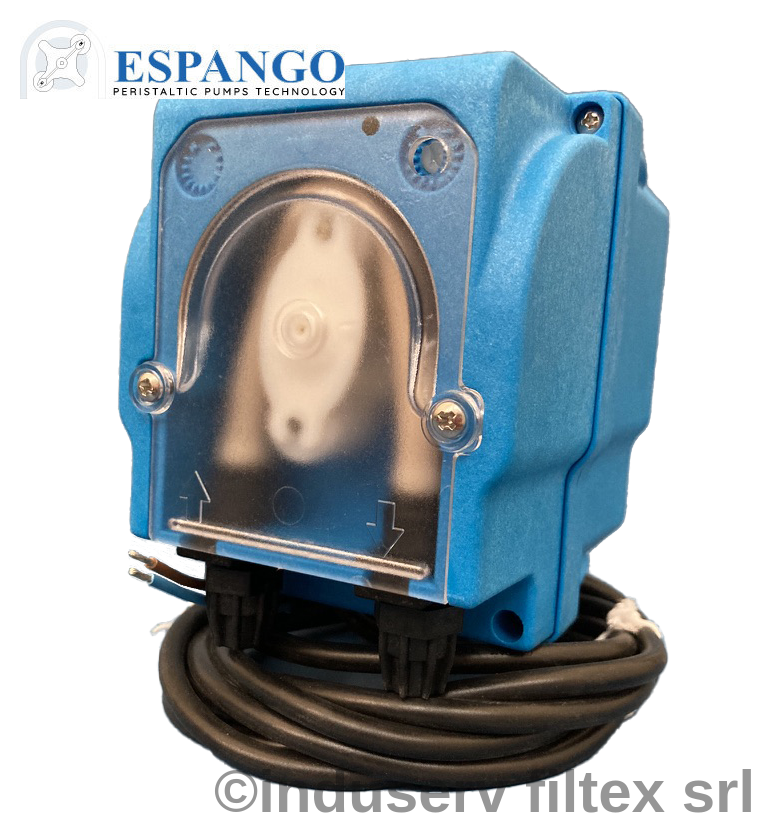

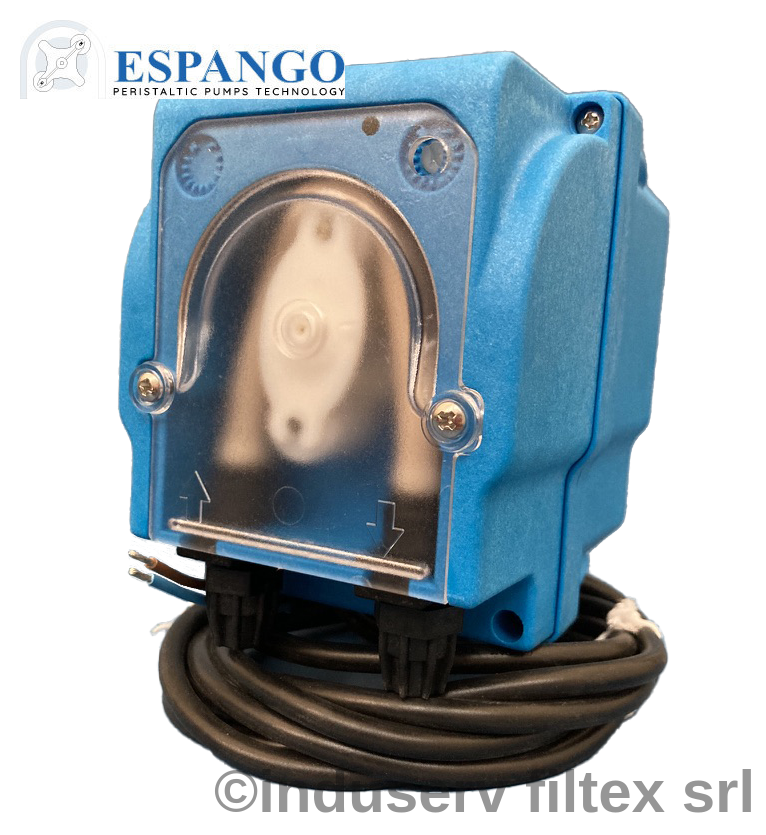

IPCR 6

Technical Specification

Explore our detailed product specifications for peristaltic pumps and enhance your technical understanding.

The IPCR 6 model is a SELF-PRIMING peristaltic pump with a ADJUSTABLE  flow rate between 0.1-20 l/h with flow rate controlled by varying the motor speed . The IPCR6 is supplied with an IP54-rated enclosure and a mounting bracket.

IPCS - Fixed speed/flow rate and IP55 case

The pump start is controlled using an external system (supplied upon request or at the Customer's responsibility) or by a float level switch, supplied separately as an accessory. Standard power supply is 230V 50/60 Hz, with optional variants of 24 Vdc or multi-voltage 20-260 VAC.

The pump IPCR 6 can be supplied in different tube sizes and speeds to fit customer’s needs

Flow-rates range: : adjustable standard 4 or 6 lt/h - upon request from 0.5 up to 20 lt/h.

Dimensions: 85 x 125 x 105 mm

Weight: 0.6 Kg

Rollers: 2

Channels: 1

Maximum pressure 1 Bar. (Available with a 3 Bar pressure capacity, with flow-rate reduction for optimized performance in various applications.)

Tubing material: Teknoprene® Tubes as standard Teknoprene© TPV or Teknoprene© SIL transparent (following International Standards for food contact); upon request Teknoprene© FKM (fluoroelastomer) or Teknoprene© HCR for very high chemical resistances

Standard tubing: 5,8 x 9,3 mm

Suction: 2,0m.

Delivery head: 10,0m.

Motor power: 5 Watt, 230 VAC / 5 Watt standard 230V 50/60 Hz - upon request 24 Vdc or multi tension 20 - 260 VAC

Speed Control: Adjustable ( IPCS - Fixed speed/flow rate )

Speed regulation: Potentiometer

Body material: Glass-reinforced PP

Head Material: Glass-reinforced PP

IP Protection Class Rating: IP54

The compact size, versatility, and cost-effectiveness of the IPCR 6 make it ideal for industrial applications by Original Equipment Manufacturers (OEMs) and for agricultural and industrial equipment across various sectors, including:

• Food machinery (dosing of aromas and additives for pastry and bakery products, brine, enzymes and yeast, beverage concentrates and fruit juices, etc.)

• Dosing of detergents, disinfectants and softeners for industrial washing machines, detergents and rinse aids, etc.

• Ink handling (water-based, UV, and more)

• Water treatment systems (acids, flocculants, pH adjustments, coagulants and flocculants, etc.)

Variants Available Upon Request:

• Pressure: 3 Bar or up to 5 Bar with reduced flow rate

• Multi-voltage: 24 Vdc or 20-260 VAC

SPECIAL VERSION FOR O.E.M. WASHING SYSTEM

Detergent and rinse solution dosing for washing machines and dishwashers.

IPCR 6/DET/4 Detergent dosing set

FLOW-RATE: 0 - 4 lt/h

DELIVERY HEAD: 1 Bar

DETERGENT KIT: tube PVC 2+2 mt,

INOX bottom filter and plastic plug 90°

IPCR 6/BRIL Rinse solution dosing set

FLOW-RATE: 0 - 1 lt/h

DELIVERY HEAD: 3 Bar

RINSE KIT: tube PVC 2 mt+tube PE 2 mt,

INOX filter and INOX injection valve 1/8’’

IPCS 6 CD

FLOW-RATE: fixed 6 l/h

ON/OFF FUNCTION: through an electronic card controlled by a conductivity probe to be positioned in the tank and with sensitivity adjustable on request

K5: 200 – 2,000 microSiemens range

K1: 2,000 – 20,000 microSiemens range

IPCS - IPCR Peristaltic Pumps

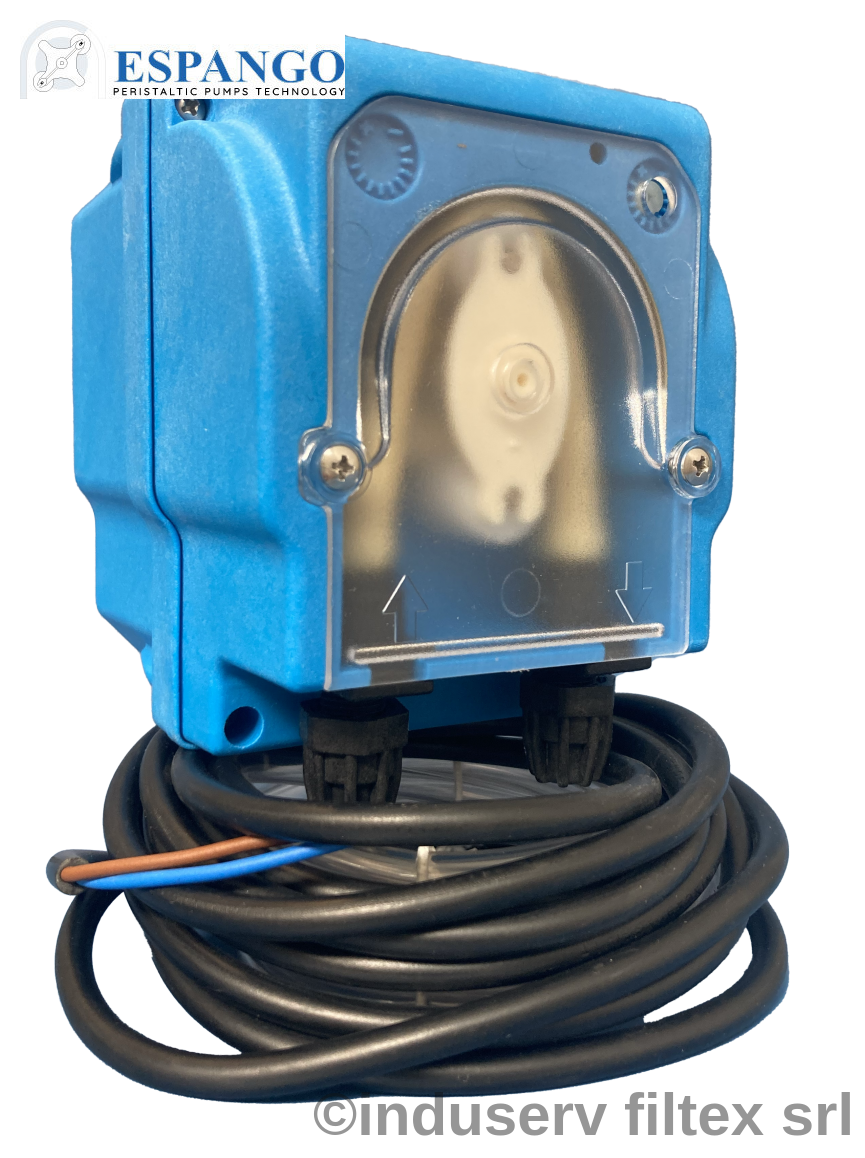

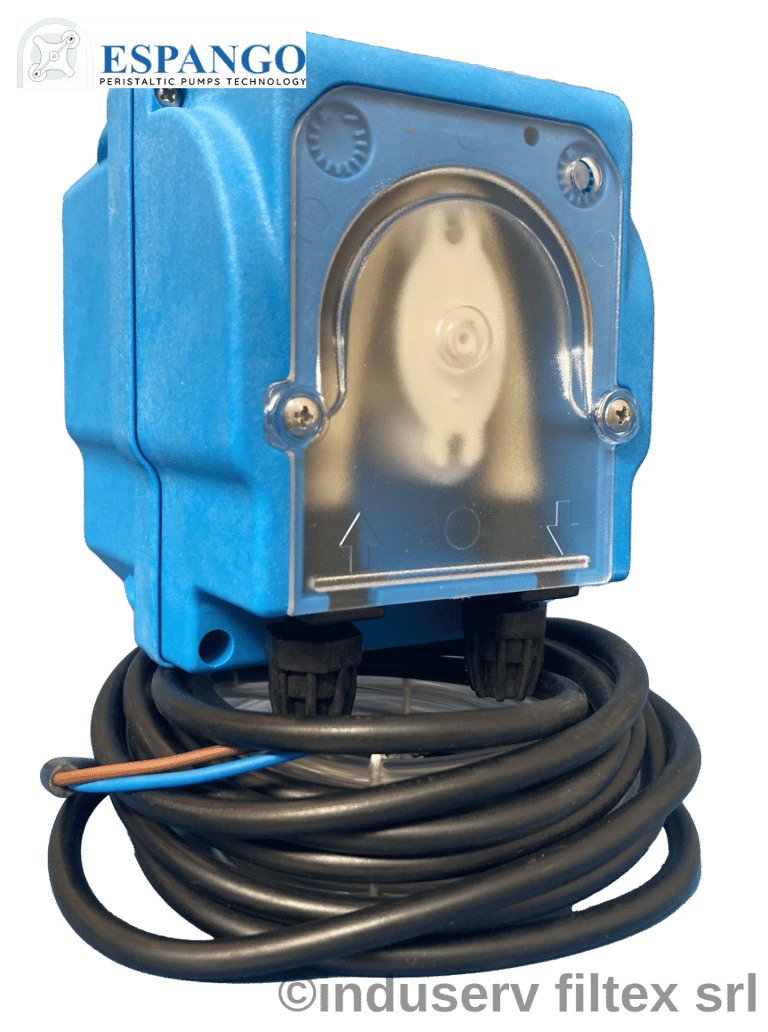

IPCR 10

Technical Specification

Explore our detailed product specifications for peristaltic pumps and enhance your technical understanding.

The IPCR 10 model is a SELF-PRIMING peristaltic pump with a ADJUSTABLE  flow rate between 10 - 20 l/h with flow rate controlled by varying the motor speed . The IPCR10 is supplied with an IP54-rated enclosure and a mounting bracket.

IPCS - Fixed speed/flow rate and IP55 case

The pump start is controlled using an external system (supplied upon request or at the Customer's responsibility) or by a float level switch, supplied separately as an accessory. Standard power supply is 230V 50/60 Hz, with optional variants of 24 Vdc or multi-voltage 20-260 VAC.

The pump IPCR 6 can be supplied in different tube sizes and speeds to fit customer’s needs

Flow-rates range: : adjustable standard 10 and 20 l/h

Dimensions: 85 x 125 x 105 mm

Weight: 0.6 Kg

Rollers: 2

Channels: 1

Maximum pressure 0.5 Bar.

Tubing material: Teknoprene® Tubes as standard Teknoprene© TPV or Teknoprene© SIL transparent (following International Standards for food contact); upon request Teknoprene© FKM (fluoroelastomer) or Teknoprene© HCR for very high chemical resistances

Standard tubing: 5,8 x 9,3 mm

Suction: 2,0m.

Delivery head: 10,0m.

Motor power: 5 Watt, standard multitension 20-260 V 50/60 Hz

Speed Control: Adjustable ( IPCS - Fixed speed/flow rate )

Speed regulation: Potentiometer

Body material: Glass-reinforced PP

Head Material: Glass-reinforced PP

IP Protection Class Rating: IP54

The compact size, versatility, and cost-effectiveness of the IPCR 10 make it ideal for industrial applications by Original Equipment Manufacturers (OEMs) and for agricultural and industrial equipment across various sectors, including:

• Food machinery (dosing of aromas and additives for pastry and bakery products, brine, enzymes and yeast, beverage concentrates and fruit juices, etc.)

• Dosing of detergents, disinfectants and softeners for industrial washing machines, detergents and rinse aids, etc.

• Ink handling (water-based, UV, and more)

• Water treatment systems (acids, flocculants, pH adjustments, coagulants and flocculants, etc.)

Variants Available Upon Request:

• Pressure: 3 Bar or up to 5 Bar with reduced flow rate

• Multi-voltage: 24 Vdc or 20-260 VAC

IPCS - IPCR Peristaltic Pumps

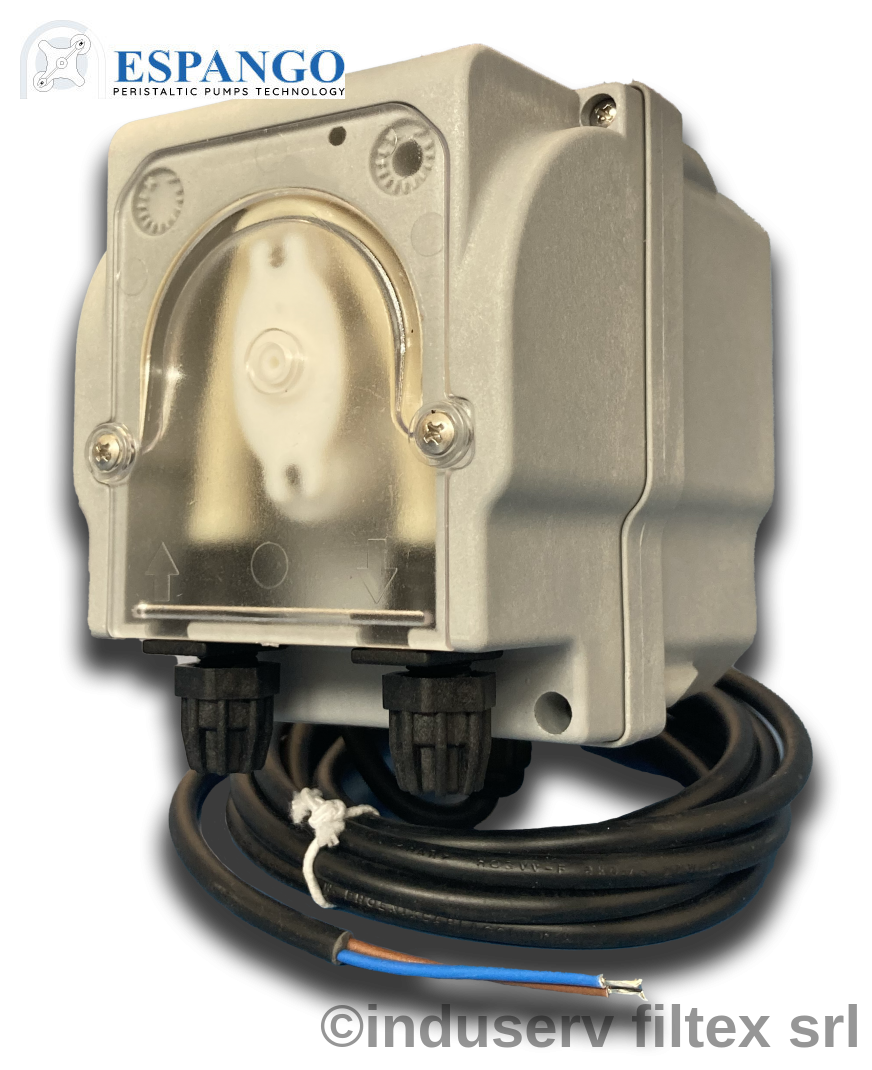

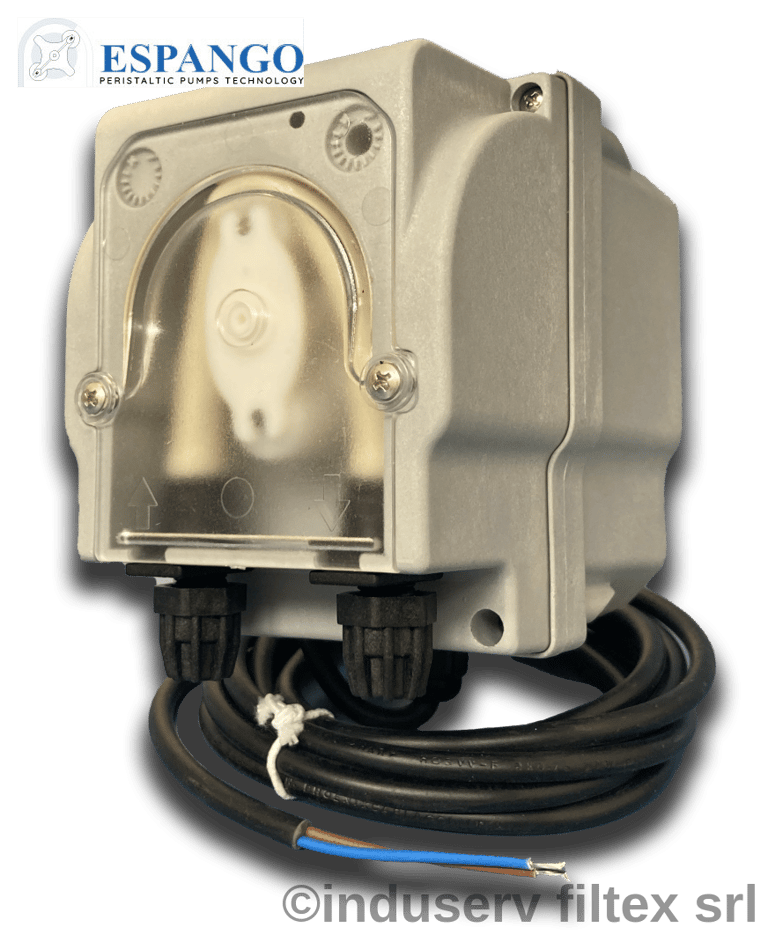

IPCS 4

Technical Specification

Explore our detailed product specifications for peristaltic pumps and enhance your technical understanding.

The IPCS 4 model is a SELF-PRIMING peristaltic pump with a FIXED  flow rate configurable between 0.1 - 20 l/h with flow rate. The IPCS4 is supplied with an IP55-rated enclosure and a mounting bracket.

The pump start is controlled using an external system (supplied upon request or at the Customer's responsibility) or by a float level switch, supplied separately as an accessory. Standard power supply is 230V 50/60 Hz, with optional variants of 24 Vdc or multi-voltage 20-260 VAC.

The pump IPCS 4 can be supplied in different tube sizes and speeds to fit customer’s needs

Flow-rates range: : fixed standard 0.1 l/h to 20 l/h

Flow rate deviation: ± 5%

Dimensions: 85 x 105 x 125 mm

Weight: 0.70 Kg

Rollers: 2

Channels: 1

Maximum pressure 1.0 Bar.

Tubing material: Teknoprene® Tubes as standard Teknoprene© TPV or Teknoprene© SIL transparent (following International Standards for food contact); upon request Teknoprene© FKM (fluoroelastomer) or Teknoprene© HCR for very high chemical resistances

Standard tubing: 5,8 x 9,3 mm

Suction: 2,0m.

Delivery head: 10,0m.

Motor power: 12 Vcc - 230 Vac 50 Hz

Speed Control: Fixed speed/flow rate

Speed regulation: Fixed

Body material: Glass-reinforced PP

Head Material: Glass-reinforced PP

IP Protection Class Rating: IP55

The compact size, versatility, and cost-effectiveness of the IPCR 10 make it ideal for industrial applications by Original Equipment Manufacturers (OEMs) and for agricultural and industrial equipment across various sectors, including:

• Food machinery (dosing of aromas and additives for pastry and bakery products, brine, enzymes and yeast, beverage concentrates and fruit juices, etc.)

• Dosing of detergents, disinfectants and softeners for industrial washing machines, detergents and rinse aids, etc.

• Ink handling (water-based, UV, and more)

• Water treatment systems (acids, flocculants, pH adjustments, coagulants and flocculants, etc.)

Variants Available Upon Request:

• Pressure: up to 3 Bar with reduced flow rate

• Multi-voltage: 24 Vdc or 20-260 VAC

Industry Sectors and Applications

Explore the diverse industry sectors and applications where our products provide reliable, efficient, and cost-effective solutions.

From manufacturing and agriculture to specialized industrial equipment, the wide range of high-quality products and solutions supplied by Micromix is designed to meet the unique demands of each sector, ensuring optimal performance and versatility.

• Industrial Processing and Research Laboratories: handling and filling of products, from aggressive to delicate and/or foaming

• Food Processing Equipment: dosing of aromas and additives for pastry and bakery products, beverage concentrates and fruit juices

• Oenology: dosage of enzymes and sulphur dioxide

• Dairy and Milk processing: Dosing of Starter Cultures (Bacterial Cultures), Rennet, Whey, Acidulants, Yeast, and Milk Storage Tank Disinfection

• Ice machines: brine dosing to adjust ice consistency

• Detergence: dosing of detergents and rinse aids for glasswashers and dishwashers

• Washing: dosing of detergents, disinfectants and softeners for industrial washing machines

• Agriculture: dosing of disinfectants, enzymes and fertilisers

• Printing: dosing of water-based and UV inks

• Aromas: dosage for aromatherapy, saunas, steam and experience showers, room scenting

• Swimming pool maintenance; dosing of chlorine or other chemicals as acids and pH adjustment

• Waste water treatment: dosage of enzymes and disinfectants for bacterial load reduction (legionella)

• Dosage: Commonly dosed liquids are acids, bases, alkalis, oils, aromas, suspensions of products also containing impurities, solid particles and viscous liquids

• Handling: peristaltic pumps are the optimal choice for handling viscous or foaming liquids, as well as liquids containing impurities such as sand, stones, granules and vegetal components (algae)

• Suction and sampling: peristaltic pumps, with their excellent suction capacity, allow the user to set up sampling and analysis systems in a simple and effective way

• Filling: of food, medical, pharmaceutical and industrial products. In particular, they are used in bottling lines for aromas, acids, bases and, in general, foaming liquids or liquids containing suspended impurities

• Transfer: peristaltic pumps are the optimal choice for transferring wine, musts, alcoholic products, as well as viscous, foaming and impurity-containing liquids

• Cleaning-in-Place (CIP) Systems; In industries such as food and beverage, peristaltic pumps are used in CIP systems to circulate cleaning solutions through pipes, tanks, and other equipment, ensuring thorough sanitation without disassembly.
