Micromix: Your Local Partner for Espango Peristaltic Pumps

Espango, part of the Teknofluor group, specialises in the design and production of peristaltic dosing pumps. The pumps cover a wide range of requirements, offering effective solutions for micro-dosing and large-volume liquid transfers.

Peristaltic metering pumps

Versatility and customisation

Each peristaltic pump is adapted to specific customer projects, modifying our basic models to meet the needs of the application. The versatility of the pumps, coupled with an always available stock, allows fast delivery times even for small batches or individual parts.

IPI Peristaltic Pumps

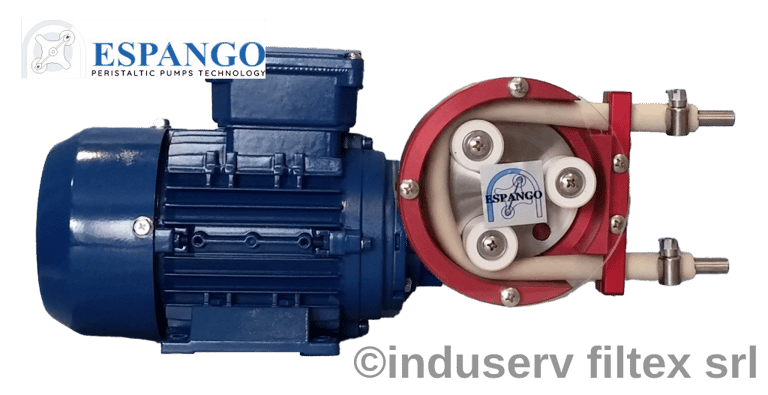

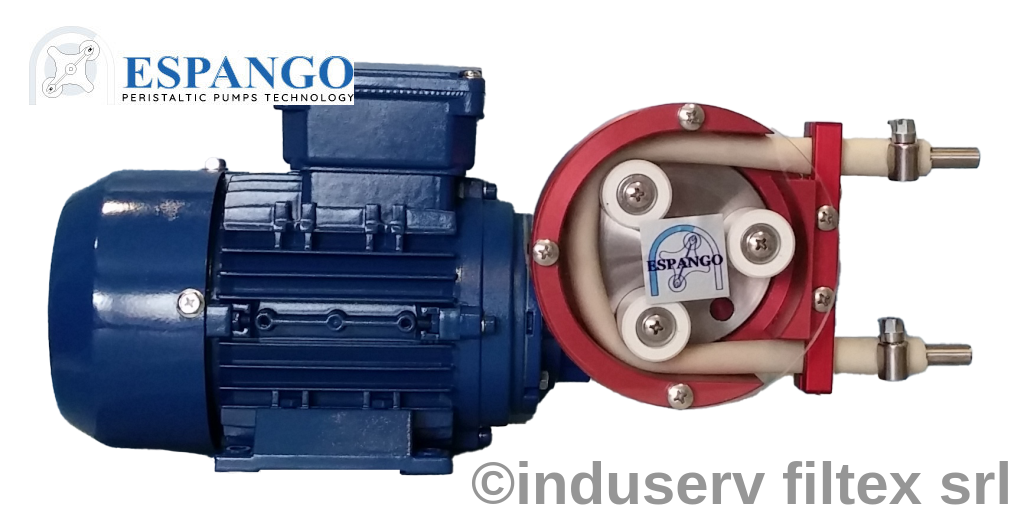

IPI 96

Technical Specification

Explore our detailed product specifications for peristaltic pumps and enhance your technical understanding.

The IPI96 model is the smallest in our range, offering a compact design with a flow rate from 5 to 165 l/h and a pressure capacity of up to 3 Bar (with flow-rate reduction). All models are designed to be supplied with 2 rollers (standard) or 3-4 rollers (upon request), featuring a leading brand worm gearbox and three-phase 230/400 Volt IP55 protected electric motors.

The pump IPI96 can be supplied in different tube sizes and speeds to fit customer’s needs

flow-rates range from 5 to 165 liters/hour,

Maximum pressure 2 Bar. (Available with a 3 Bar pressure capacity, with flow-rate reduction for optimized performance in various applications.)

Tubing material: Teknoprene® Tubes TPV natural (FDA)

Standard tubing: 9.6 x 16 mm

Suction: 4,0m.

Delivery head: 10,0m.

Motor power: 0,12 kW

Application sectors

Industrial processing

Food machinery

Laboratory

Aromas

Water treatment

Printing

HANDLING

FILLING

TRANSFER

DOSAGE

IPI96 small size, versatility, and cost-effectiveness make it ideal for a variety of industrial applications, including:

• Pastry mixing equipment (eggs, water, aromas, etc.)

• Water treatment systems (acids, flocculants, pH adjustments, etc.)

• Sampling in wastewater treatment and analyzers

• Dosing of coagulants and flocculants

• Ink handling (water-based, UV, and more)

The IPI96 is a reliable, efficient solution for these industries, offering both performance and value.

IPI Peristaltic Pumps

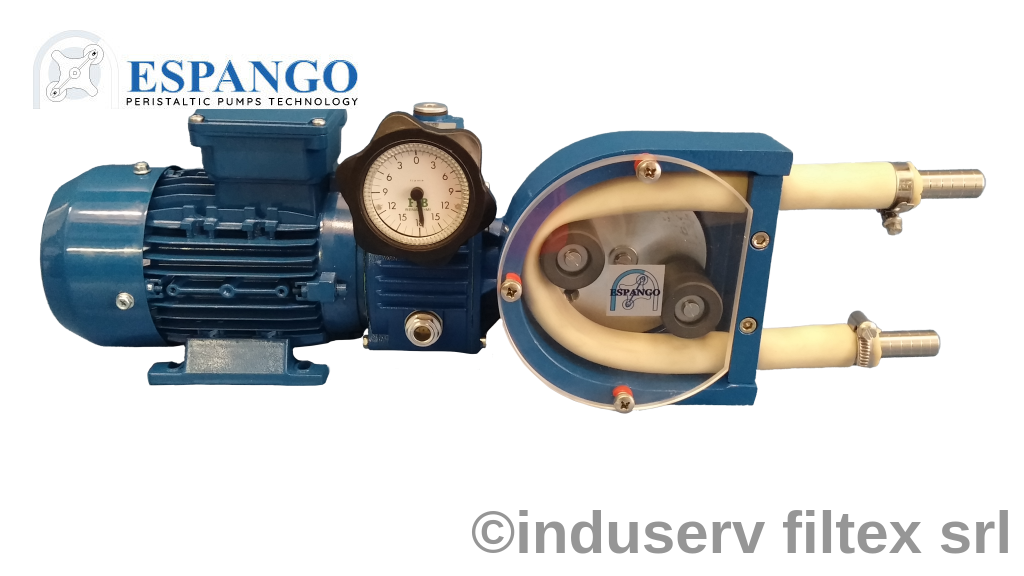

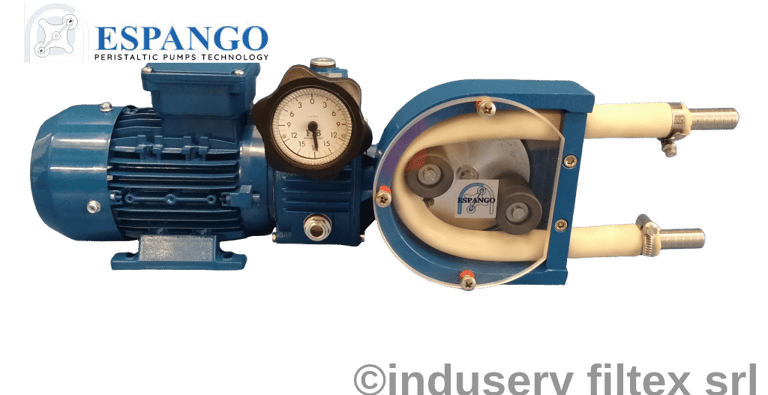

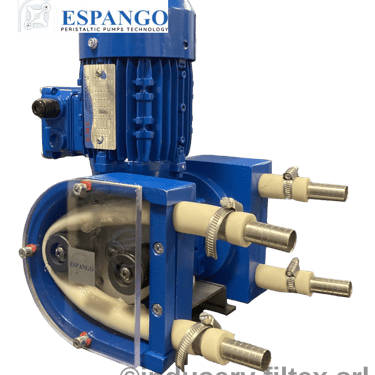

IPI 150

Technical Specification

Explore our detailed product specifications for peristaltic pumps and enhance your technical understanding.

The IPI150 model is our most popular peristaltic pump, offering flow rates from 25 to 365 l/h and pressures up to 6 Bar. All models are designed to be supplied with 2 rollers (standard) or 3-4 rollers (upon request), featuring a leading brand worm gearbox and three-phase 230/400 Volt IP55 protected electric motors.

The pump IPI150 can be supplied in different tube sizes and speeds to fit customer’s needs

flow-rates range from 25 to 365 liters/hour,

Maximum pressure 2 Bar. (Available with a 4 Bar pressure capacity, with flow-rate reduction for optimized performance in various applications.)

Tubing material: Teknoprene® Tubes TPV natural (FDA)

Standard tubing:15 x 25 mm

Suction: 4,0m.

Delivery head: 10,0m.

Motor power: 0,18 kW

Application sectors

Industrial processing

Food machinery

Laboratory

Aromas

Water treatment

Printing

HANDLING

FILLING

TRANSFER

DOSAGE

The robust construction of IPI150 pump model and the ease of integration into O.E.M. systems allow the maximum flexibility of use. The most interesting applications are in the following areas:

• transfer and dosage of inks, glues, varnishes, latex suspensions, etc…

• water treatment (sampling, pH adjustment, water handling, etc …)

• bakery and pastry (dosage of additives and flavourings, dosage of brine and eggs, dosage of water with yeast, etc …)

• handling of abrasive and corrosive fluids (ferric chloride, copper sulfate, etc …)

• dosing of additives for beer, wine, beverages, dairy and food products in general.

The IPI150 is a reliable, efficient solution for these industries, offering both performance and value.

IPI Peristaltic Pumps

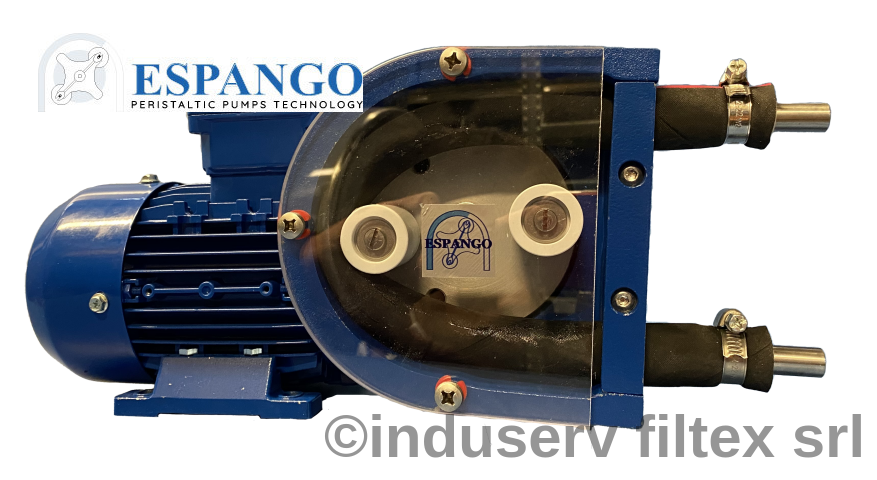

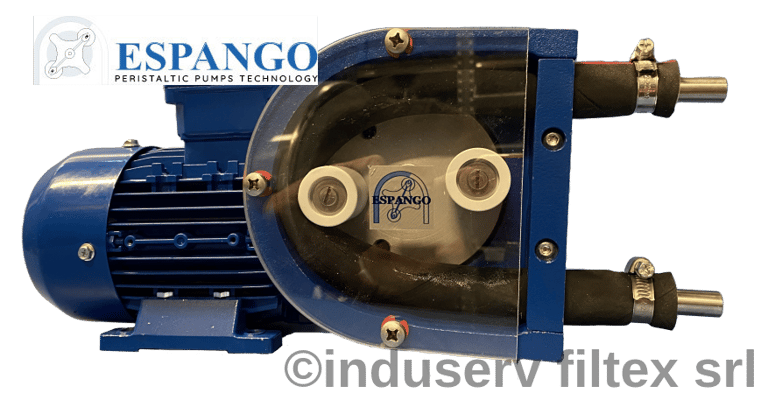

IPI 350

Technical Specification

Explore our detailed product specifications for peristaltic pumps and enhance your technical understanding.

The IPI 350 model is the largest of the renewed IPI range (the greater IPI450 model is constructively different) and covers a range of flow-rates from 79 to 2300 l / h (with inverter control panel the flow-rates can reach the range of 23 to 3200 l / h). All models are designed to be supplied with 2 rollers (standard) or 3-4 rollers (upon request), featuring a leading brand worm gearbox and three-phase 230/400 Volt IP55 protected electric motors.

The pump IPI350 can be supplied in different tube sizes and speeds to fit customer’s needs

flow-rates range from 79 to 230 liters/hour,

Maximum pressure 2 Bar. (Available with a 4 Bar pressure capacity, with flow-rate reduction for optimized performance in various applications.)

Tubing material: Teknoprene® Tubes TPV natural (FDA)

Standard tubing: 30 x 45 mm

Suction: 4,0m.

Delivery head: 10,0m.

Motor power: 0,55 kW

Application sectors

Industrial processing

Food machinery

Laboratory

Aromas

Water treatment

Printing

Additives

HANDLING

FILLING

TRANSFER

DOSAGE

The applications of IPI 350 model are the most diverse and, just to mention a few, include:

• dosage and handling of milk of lime, polyelectrolyte,

• carbonates and ceramics.

• dosage of water with ferments in the dairy sector.

• pumping of wastewater in mining and in filter-presses

• adduction.

• inks and liquid foaming handling.

The IPI350 is a reliable, efficient solution for these industries, offering both performance and value.

IPI Peristaltic Pumps

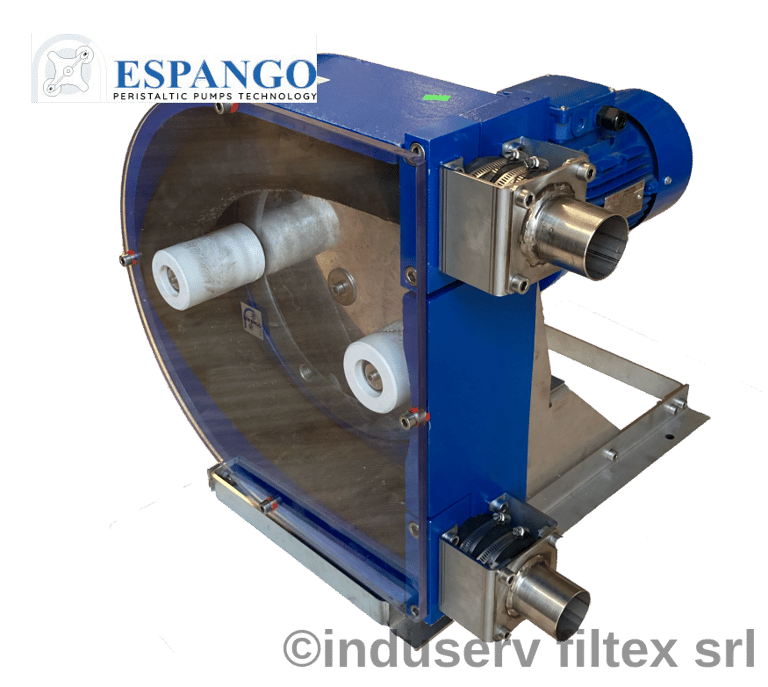

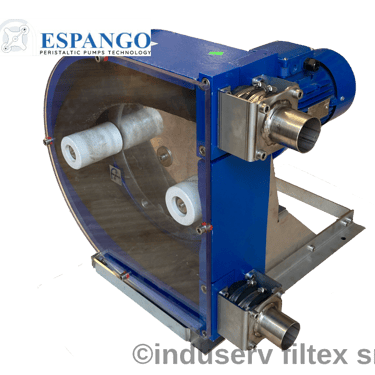

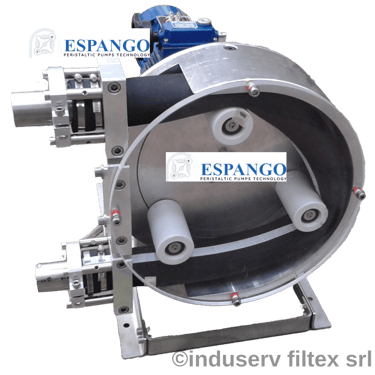

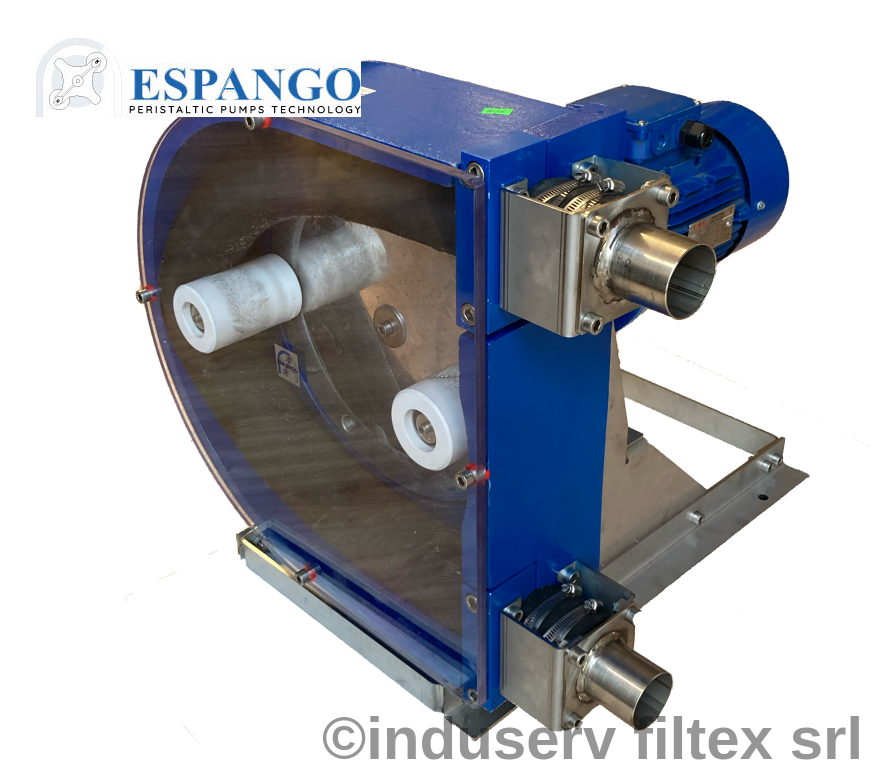

IPI 450

Technical Specification

Explore our detailed product specifications for peristaltic pumps and enhance your technical understanding.

The IPI 450 model is the largest of the renewed IPI range and covers a range of flow-rates from 1749 to 9257 l/h (with inverter control the flow-rates can reach the range of 699 to 12960 l / h).

The pump IPI450 can be supplied in different tube sizes and speeds to fit customer’s needs

flow-rates range from 1749 to 9257 liters/hour,

Maximum pressure 2 Bar. (Available with a 3 Bar pressure capacity, with flow-rate reduction for optimized performance in various applications.)

Tubing material: NR reinforced

Standard tubing: 45 x 70 mm

Suction: 4,0m.

Delivery head: 10,0m.

Motor power: 1,1 kW

Application sectors

Industrial processing

Food machinery

Laboratory

Aromas

Water treatment

Printing

Additives

HANDLING

FILLING

TRANSFER

DOSAGE

The applications of the IPI450 model are the most diverse and, just to mention a few, include:

• Transfer and dosage of inks, glues, varnishes, latex suspensions, etc …

• Water treatment (sampling, pH adjustment, water handling, etc …)

• Bakery and pastry (dosage of additives and flavourings, dosage of brine and eggs, dosage of water with yeast, etc …)

• Handling of abrasive and corrosive fluids (ferric chloride, copper sulfate, etc …)

• Dosing of additives for beer, wine, beverages, dairy and food products in general.

The IPI450 is a reliable, efficient solution for these industries, offering both performance and value.

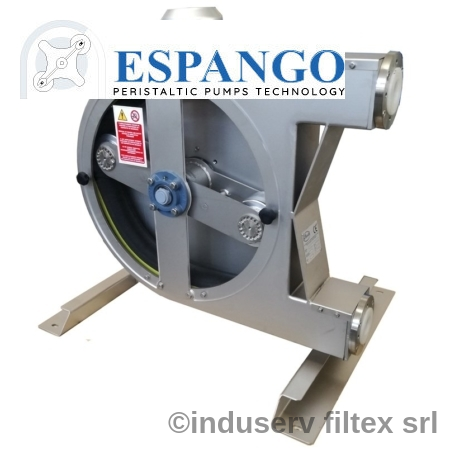

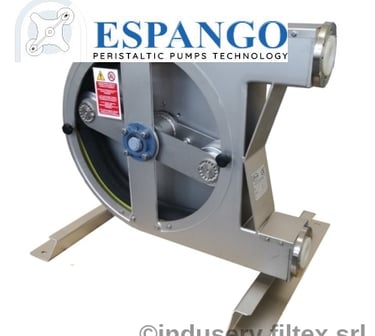

Peristaltic Pumps RPE Series

RPE 70/150

Technical Specification

Explore our detailed product specifications for peristaltic pumps and enhance your technical understanding.

The RPE pumps series is the largest in our range of peristaltic pumps. These pumps are made of a high thickness AISI 304 stainless steel sheet case and covers a range of flow-rates from 1500 to 10.500 l/h

Components of the head such as flanges, roller support, rollers, screws, small parts and fittings are in Anticorodal Anodized aluminum or AISI 304/316 stainless steel formaximum chemical and mechanical resistance.

The pump RPE 70/150 can be supplied in different tube sizes and speeds to fit customer’s needs

flow-rates range from 1500 to 10500 liters/hour,

Maximum pressure 2 Bar. (Available with a 3 Bar pressure capacity, with flow-rate reduction for optimized performance in various applications.)

Tubing material: NR reinforced

Standard tubing: x mm

Suction: 4,0m.

Delivery head: 10,0m.

Motor power: RPE70 1,5 kW / RPE150 3.0kW

Application sectors

Industrial processing

Food machinery

Laboratory

Aromas

Water treatment

Printing

Additives

HANDLING

FILLING

TRANSFER

DOSAGE

The applications of RPE 70/150 pump models are the most disparate and, just to give some examples, include:

• dosing and handling of lime milk, polyelectrolyte, carbonates and

• ceramics.

• dosing of water with the addition of ferments in the dairy sector.

• sludge and wastewater pumping in the water treatment and mining

• sector.

• handling of inks and foaming liquids.

The RPE70/150 is a reliable, efficient solution for these industries, offering both performance and value.

Contact Us

...for more questions and specifications regarding industrial mixers and equipment for handling powders, bulk solids and liquids.

High-performance pumps for various applications

Provide a short summary of your recent projects, highlighting the most important things.

Standard Specifications

All models are designed to be supplied with 2 rollers (standard) or 3-4 rollers (upon request), featuring a leading brand worm gearbox and three-phase 230/400 Volt IP55 protected electric motors.

Pumping head, screen ring, terminal clamps in thermoplastic or ANODIZED ANTICORODAL aluminum, toolworked from the solid blocks

Pumping head components as terminal clamps, disk, pin roll holders, fasteners, hardware and hose connection tube are made of ALUMINIUM Anticorodal anodise or in STAINLESS STEEL SS 304 / 316 for the maximum chemical and mechanical resistance.

PET or PTFE polymer rollers, self-lubricating and high mechanical strength. Pin roll holders of special design "cantilevered" for maximum ease of maintenance and adaptability to C.I.P. / S.I.P. systems.

Three-phase motor 230/400 Volt - 50 Hz. - IP55 - 1400 rpm. ATEX certified or 230V single-phase motors are available upon request, providing additional flexibility for your specific application needs.

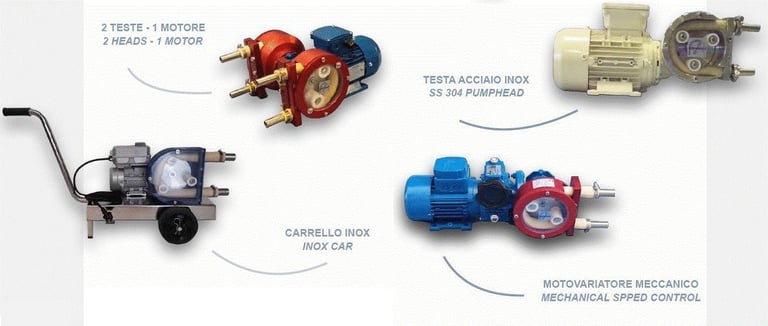

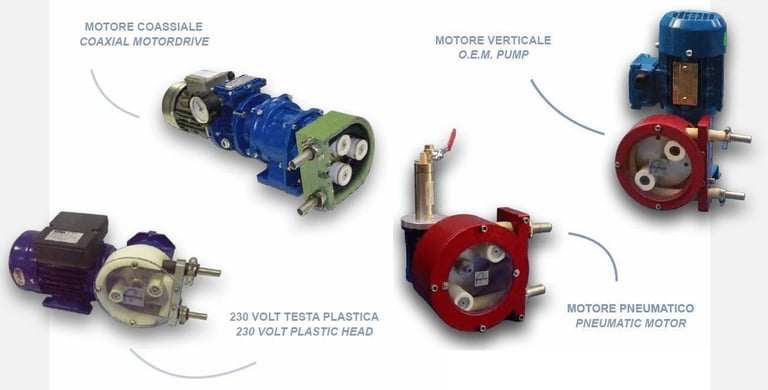

Available OPTIONS

• Hose fittings TRI-CLAMP, DIN 11851, Garolla, SMS, NPT.

• Improved accuracy through the use of 3 or 4 rollers, reducing pulsations and lowering capacity variations.

• Pumps equipped with a pulsation damper for improved flow consistency and smoother operation.

• Pneumatic motors.

• Assembled on stainless steel trolleys for easy installation and efficient mobility within the workshop.

• Pumps designed for the food and pharmaceutical industries, featuring a fully stainless steel head

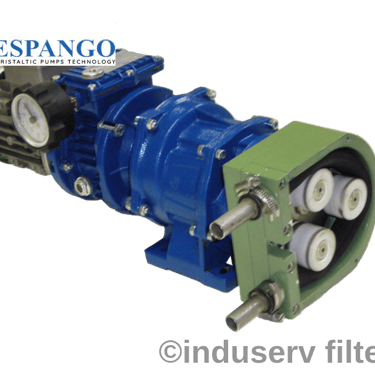

• Pumps with a vertically mounted motor or coaxial gearbox, designed to minimize footprint for easy installation and streamlined maintenance in confined spaces.

• Pumps designed for high-temperature liquids (>60°C), with customizable flow rates and enhanced pressure capabilities of up to 6 Bar.

• Pumps with variable speed control through mechanical variator or VFD (Variable Frequency Drive), featuring manual potentiometer adjustments or input signals of 0-20 mA or 0-10 V for precise flow rate management.

Product Features

Explore the key features of our product range, designed to ensure efficiency and reliability across a variety of applications.

Customer Success Stories

Explore customer experiences with our product range and innovative solutions, driving success across diverse industries.

micromix_ESPANGO_IPI_RPE_peristaltic pumps_EN

Explore More Products

You May Be Interested In

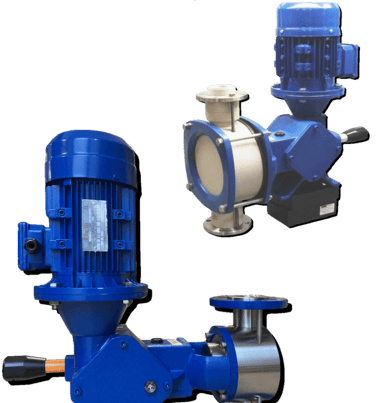

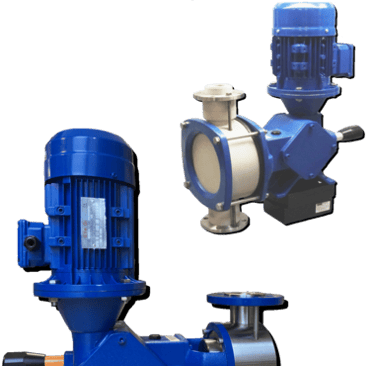

Metering Pumps
