Micromix: Your Local Partner for Espango Peristaltic Pumps

Espango, part of the Teknofluor group, specialises in the design and production of peristaltic dosing pumps. The pumps cover a wide range of requirements, offering effective solutions for micro-dosing and large-volume liquid transfers.

Peristaltic metering pumps

Versatility and customisation

Each peristaltic pump is adapted to specific customer projects, modifying our basic models to meet the needs of the application. The versatility of the pumps, coupled with an always available stock, allows fast delivery times even for small batches or individual parts.

IPL RANGE

Laboratory and Dosing Systems Solutions

Manufacturing of adjustable flow pumps for laboratory applications and precise dosing.

• Possibility of adjusting dosing time

• Self-priming

• Standard power supply 230V

• Reversible flow

• Closed case also with remote controls

IPL Laboratory Peristaltic Pumps

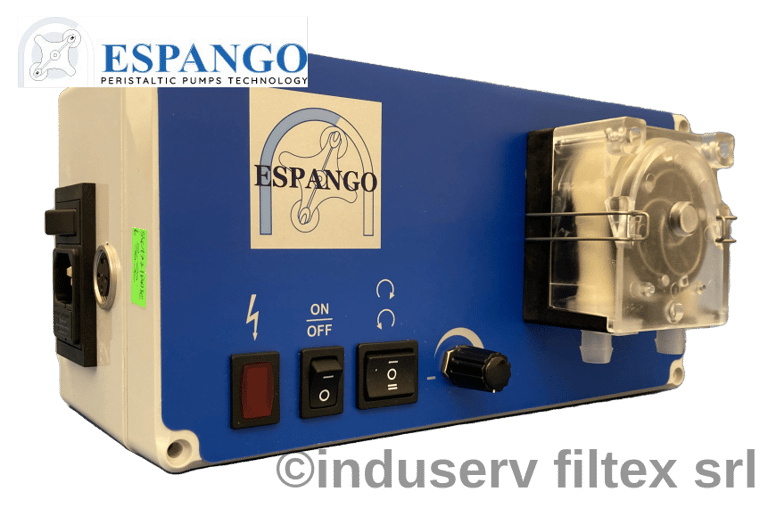

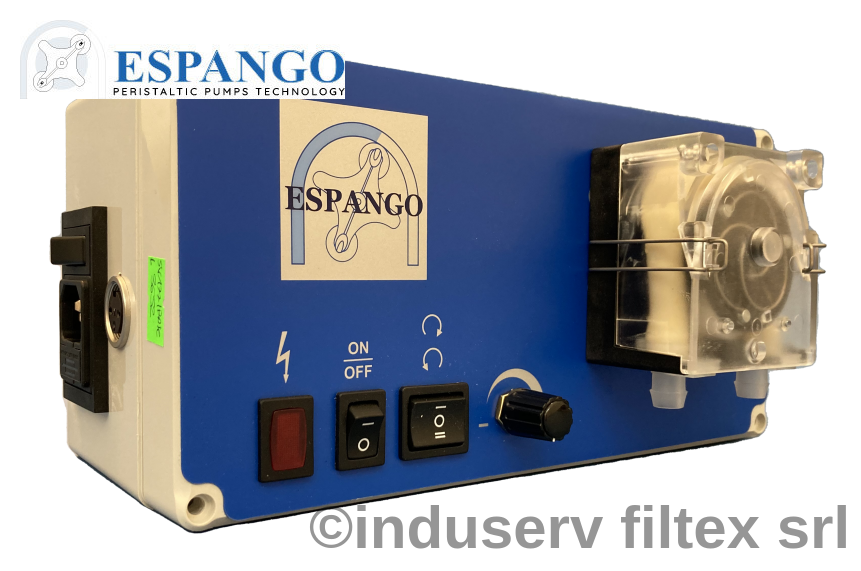

IPL 10/30

Technical Specification

Explore our detailed product specifications for peristaltic pumps and enhance your technical understanding.

The IPL 10/30 is a versatile dosing pump designed for industrial applications and chemical products. It features simple ON/OFF operation, a flow direction switch, and speed regulation via a manual potentiometer. Customizable to meet specific customer requirements, it’s available in various tube sizes and speeds to suit your needs

The IPL 10/30 pump is a simple dosing system designed for industrial applications and chemical products. It can be customized to meet the customer's specific requirements.

Flow-rates range: : adjustable from 400 up to 1200 ml/min (24 - 70 l/h)

Flow rate deviation: ± 5%

Dimensions: 120 x 120 x 240 mm

Weight: 1.5 Kg

Rollers: 3 or 6 rollers option for high precision

Maximum pressure 1.0 Bar.

Tubing material: Teknoprene® Tubes as standard Teknoprene© TPV or Teknoprene© SIL transparent (following International Standards for food contact); upon request Teknoprene© FKM (fluoroelastomer) or Teknoprene© HCR for very high chemical resistances

Motor power: 30 Watt standard 230 Vac 50 Hz

Standard Features:

• ON/OFF operation via panel switch

• Flow direction switch

• Speed regulation with manual potentiometer

Body material: Glass-reinforced PA

Head Material: Glass-reinforced PA

IP Protection Class Rating: IP40

The IPL range of peristaltic pumps from Espango offers adjustable flow rates for precise dosing applications. Designed for laboratory and small-scale production, these self-priming pumps allow easy adjustment of dosing time. With reversible flow, a closed-case design, and remote control options, they are ideal for custom dosing systems across various industries:

• Simplified dosing or sampling

• Pre-series production

• Small-scale production runs

• Pilot plants

• Customised dosing systems

Variants Available Upon Request:

• Reduced flow-rate option or 6-roller configuration for high precision

• Increased pressure up to 3 Bar (with reduced capacity)

• Time-based dosing system

• ON/OFF control via external foot switch or NO contact

• Remote control via 0-20 mA or 0-10 V analog signals, or remote start/stop signals

IPL Laboratory Peristaltic Pumps

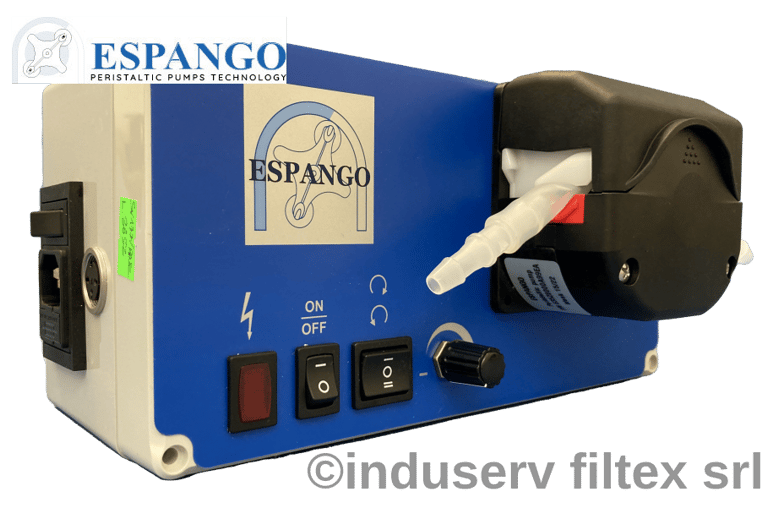

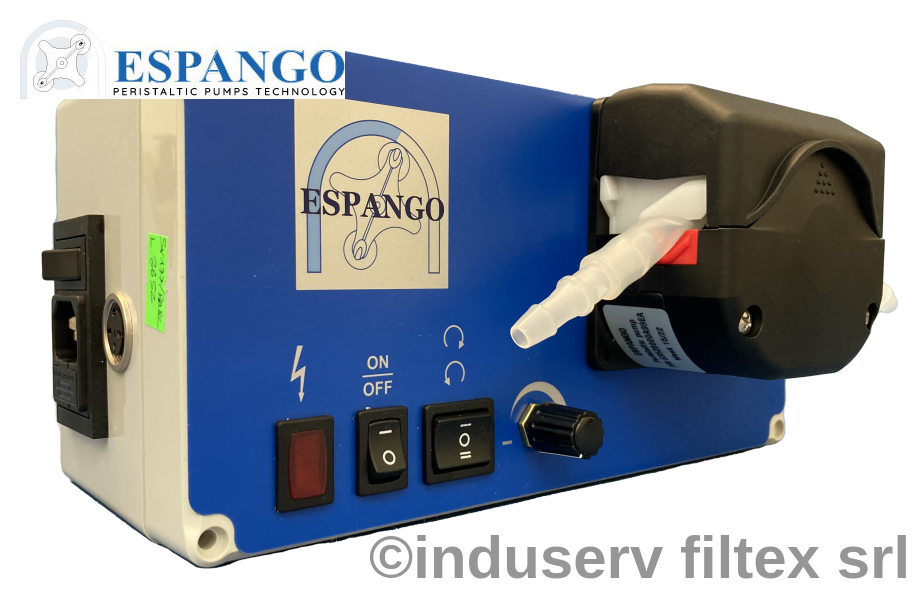

IPL 10/100

Technical Specification

Explore our detailed product specifications for peristaltic pumps and enhance your technical understanding.

The IPL 10/100 is a versatile dosing pump designed for industrial applications and chemical products. It features simple ON/OFF operation, a flow direction switch, and speed regulation via a manual potentiometer. Customizable to meet specific customer requirements, it’s available in various tube sizes and speeds to suit your needs

The IPL 10/100 pump is a simple dosing system designed for industrial applications and chemical products. It can be customized to meet the customer's specific requirements.

Flow-rates range: : adjustable from 650 - 2000 ml/min (40 - 120 l/h) with

Quick tube change

Flow rate deviation: ± 5%

Dimensions: 120 x 120 x 240 mm

Weight: 1.5 Kg

Rollers: 3

Maximum pressure 1.0 Bar.

Tubing material: Teknoprene® Tubes as standard Teknoprene© TPV or Teknoprene© SIL transparent (following International Standards for food contact); upon request Teknoprene© FKM (fluoroelastomer) or Teknoprene© HCR for very high chemical resistances

Motor power: 50 Watt standard 230 Vac 50 Hz

Standard Features:

• ON/OFF operation via panel switch

• Flow direction switch

• Speed regulation with manual potentiometer

Body material: Glass-reinforced PA

Head Material: Glass-reinforced PA

IP Protection Class Rating: IP40

The IPL range of peristaltic pumps from Espango offers adjustable flow rates for precise dosing applications. Designed for laboratory and small-scale production, these self-priming pumps allow easy adjustment of dosing time. With reversible flow, a closed-case design, and remote control options, they are ideal for custom dosing systems across various industries:

• Simplified dosing or sampling

• Pre-series production

• Small-scale production runs

• Pilot plants

• Customised dosing systems

Variants Available Upon Request:

• Increased pressure up to 2 Bar (with reduced capacity)

• Time-based dosing system

• ON/OFF control via external foot switch or NO contact

• Remote control via 0-20 mA or 0-10 V analog signals, or remote start/stop signals

IPL Laboratory Peristaltic Pumps

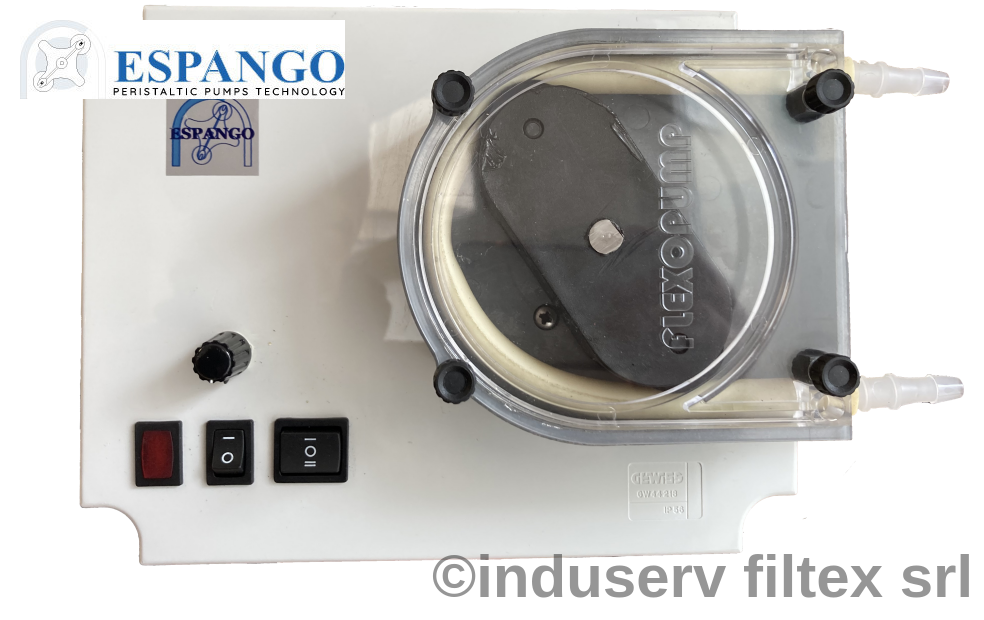

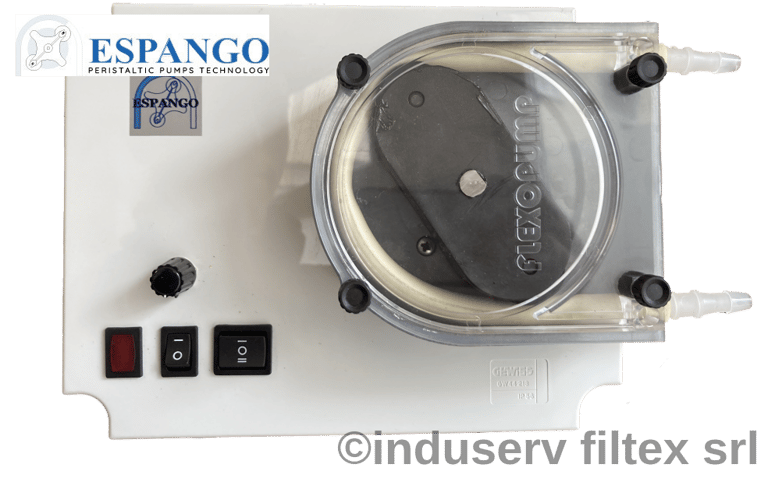

IPL 10/200

Technical Specification

Explore our detailed product specifications for peristaltic pumps and enhance your technical understanding.

The IPL 10/200 is a versatile dosing pump designed for industrial applications and chemical products. It features simple ON/OFF operation, a flow direction switch, and speed regulation via a manual potentiometer. Customizable to meet specific customer requirements, it’s available in various tube sizes and speeds to suit your needs

The IPL 10/200 pump is a simple dosing system designed for industrial applications and chemical products. It can be customized to meet the customer's specific requirements.

Flow-rates range: : adjustable from1100 up to 3300 ml/min (66 – 200l/h) with Possibility of reduced flow-rates

Flow rate deviation: ± 5%

Dimensions: 120 x 120 x 240 mm

Weight: 2.5 Kg

Rollers: 2

Maximum pressure 1.0 Bar.

Tubing material: Teknoprene® Tubes as standard Teknoprene© TPV or Teknoprene© SIL transparent (following International Standards for food contact); upon request Teknoprene© FKM (fluoroelastomer) or Teknoprene© HCR for very high chemical resistances

Motor power: 60 Watt standard 230 Vac 50 Hz

Standard Features:

• ON/OFF operation via panel switch

• Flow direction switch

• Speed regulation with manual potentiometer

Body material: Glass-reinforced PP

Head Material: Glass-reinforced PP

IP Protection Class Rating: IP40

The IPL range of peristaltic pumps from Espango offers adjustable flow rates for precise dosing applications. Designed for laboratory and small-scale production, these self-priming pumps allow easy adjustment of dosing time. With reversible flow, a closed-case design, and remote control options, they are ideal for custom dosing systems across various industries:

• Simplified dosing or sampling

• Pre-series production

• Small-scale production runs

• Pilot plants

• Customised dosing systems

Variants Available Upon Request:

• Increased pressure up to 2 Bar (with reduced capacity)

• Time-based dosing system

• ON/OFF control via external foot switch or NO contact

• Remote control via 0-20 mA or 0-10 V analog signals, or remote start/stop signals

IPL Laboratory Peristaltic Pumps

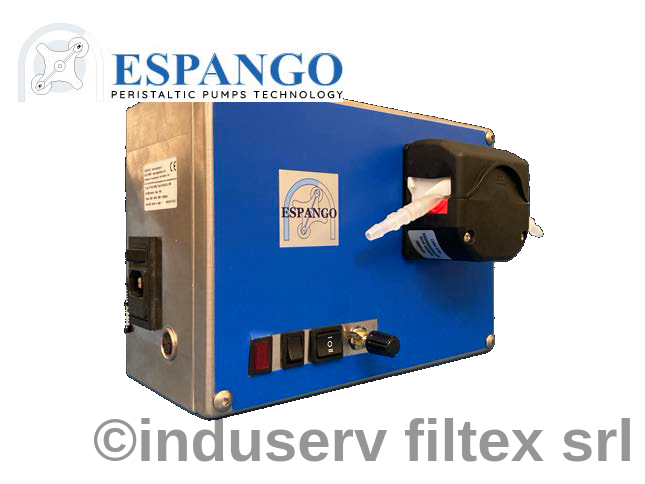

IPL 150

Technical Specification

Explore our detailed product specifications for peristaltic pumps and enhance your technical understanding.

The IPL 150 is a versatile dosing pump designed for industrial applications and chemical products, featuring easy integration into C.I.P. and S.I.P. systems. It comes with an INOX stainless steel case, ensuring optimal cleaning and compliance with GMP and GLP standards. The pump offers simple ON/OFF operation, a flow direction switch, and speed regulation via a manual potentiometer. Customizable to meet specific customer requirements, it is available in various tube sizes and speeds to suit your needs.

The IPL 150 is part of a newly developed range of high-precision dosing systems, featuring an IP40 stainless steel closed case that houses the electronic control system. It is equipped with ESPANGO IPS100 series motor-driven head, which uses a stepping motor to deliver high strength, quiet operation, precise adjustability, and smooth performance.

Flow-rates range: : adjustable from 650 - 2000 ml/min (40 - 120 l/h) with

Quick tube change

Flow rate deviation: ± 5%. Upon request, dosing accuracy can be adjusted to ± 3%.

Dimensions: 120 x 120 x 240 mm

Weight: 2.5 Kg

Rollers: 3

Maximum pressure 1.0 Bar.

Tubing material: Teknoprene® Tubes as standard Teknoprene© TPV or Teknoprene© SIL transparent (following International Standards for food contact); upon request Teknoprene© FKM (fluoroelastomer) or Teknoprene© HCR for very high chemical resistances

Motor power: 50 Watt standard 230 Vac 50 Hz

Standard Features:

• ON/OFF operation via panel switch

• Flow direction switch

• Speed regulation with manual potentiometer

Body material: Glass-reinforced PA

Head Material: Glass-reinforced PA

IP Protection Class Rating: IP40, INOX stainless steel case ensures superior cleaning and complies with GMP and GLP standards.

Designed for easy integration into C.I.P. and S.I.P. systems.

The IPL range of peristaltic pumps from Espango offers adjustable flow rates for precise dosing applications. Designed for laboratory and small-scale production, these self-priming pumps allow easy adjustment of dosing time. With reversible flow, a closed-case design, and remote control options, they are ideal for custom dosing systems across various industries:

• Simplified dosing or sampling

• Pre-series production

• Small-scale production runs

• Pilot plants

• Customised dosing systems

Variants Available Upon Request:

• Increased pressure up to 2 Bar (with reduced capacity)

• Time-based dosing system

• ON/OFF control via external foot switch or NO contact

• Remote control via 0-20 mA or 0-10 V analog signals, or remote start/stop signals

Customizable Precision Dosing System

Accurate and Flexible Dosing Solutions

IPL 10 TIMER

IPL10 series pumps with TIMER set-up for controlled dosing of the product, according to customer’s needs;

“Time dosing system” with digital temporised dosing timer - range 0,01” - 99.99” or 1” - 9h 59’ 59”;

"Single" or "repeat" dosing with setting of the waiting time;

ON/OFF run by “Foot Switch System” or by remote contact NO;

Flow direction switch on front panel;

Speed rate regulation with potentiometer;

Upon request: regulation with external 0-20 mA or 0-10 V signal

Dosed accuracy ± 5%;

IPL 10 FS

Small/medium batch dosing of challenging products

The IPL10 FS system is designed for small to medium product series bottling, particularly for acid, basic, and foamy products, as well as any items requiring high dosing accuracy. This highly efficient, versatile, and reliable system replaces larger, more complex setups while offering a competitive price and small dimensions. It is simple and intuitive to use, with a dosing accuracy of ± 5% as standard.

The system includes the IPL10 TIMER series dosing pump mounted on an INOX steel support, which houses a 10L product container and a front delivery terminal. For enhanced precision, an optional professional electronic scale can be added to control the dosed volume. The entire system is fully customizable to meet the specific needs of the customer.

General Data:

• Pump flow rate ranges from 24 to 200 l/h, adjustable based on customer requirements (filling times, hourly intervals, required precision, etc.)

• Back support designed for housing a 10L container

• Disposable polyethylene terminals for optimal cleaning and safety

• Standard bottle sizes: 100 mm height and 250 mm height (customizable for larger sizes based on project needs)

• Electronic control scale with a range up to 60 kg, offering a precision of 1/3000 of full scale

• Explosion-proof scale version available upon request

This system provides a compact and cost-effective solution for precise and efficient dosing in a variety of industrial applications.

Industry Sectors and Applications

Explore the diverse industry sectors and applications where our products provide reliable, efficient, and cost-effective solutions.

From manufacturing and agriculture to specialized industrial equipment, the wide range of high-quality products and solutions supplied by Micromix is designed to meet the unique demands of each sector, ensuring optimal performance and versatility.

• Industrial Processing and Research Laboratories: handling and filling of products, from aggressive to delicate and/or foaming

• Food Processing Equipment: dosing of aromas and additives for pastry and bakery products, beverage concentrates and fruit juices

• Oenology: dosage of enzymes and sulphur dioxide

• Dairy and Milk processing: Dosing of Starter Cultures (Bacterial Cultures), Rennet, Whey, Acidulants, Yeast, and Milk Storage Tank Disinfection

• Ice machines: brine dosing to adjust ice consistency

• Detergence: dosing of detergents and rinse aids for glasswashers and dishwashers

• Washing: dosing of detergents, disinfectants and softeners for industrial washing machines

• Agriculture: dosing of disinfectants, enzymes and fertilisers

• Printing: dosing of water-based and UV inks

• Aromas: dosage for aromatherapy, saunas, steam and experience showers, room scenting

• Swimming pool maintenance; dosing of chlorine or other chemicals as acids and pH adjustment

• Waste water treatment: dosage of enzymes and disinfectants for bacterial load reduction (legionella)

• Dosage: Commonly dosed liquids are acids, bases, alkalis, oils, aromas, suspensions of products also containing impurities, solid particles and viscous liquids

• Handling: peristaltic pumps are the optimal choice for handling viscous or foaming liquids, as well as liquids containing impurities such as sand, stones, granules and vegetal components (algae)

• Suction and sampling: peristaltic pumps, with their excellent suction capacity, allow the user to set up sampling and analysis systems in a simple and effective way

• Filling: of food, medical, pharmaceutical and industrial products. In particular, they are used in bottling lines for aromas, acids, bases and, in general, foaming liquids or liquids containing suspended impurities

• Transfer: peristaltic pumps are the optimal choice for transferring wine, musts, alcoholic products, as well as viscous, foaming and impurity-containing liquids

• Cleaning-in-Place (CIP) Systems; In industries such as food and beverage, peristaltic pumps are used in CIP systems to circulate cleaning solutions through pipes, tanks, and other equipment, ensuring thorough sanitation without disassembly.
