Micromix: Your Local Partner for Espango Peristaltic Pumps

Espango, part of the Teknofluor group, specialises in the design and production of peristaltic dosing pumps. The pumps cover a wide range of requirements, offering effective solutions for micro-dosing and large-volume liquid transfers.

Peristaltic metering pumps

Versatility and customisation

Each peristaltic pump is adapted to specific customer projects, modifying our basic models to meet the needs of the application. The versatility of the pumps, coupled with an always available stock, allows fast delivery times even for small batches or individual parts.

IPS RANGE

Industrial OEM Equipment

Production of pumps for machinery and OEM systems featuring an exposed drive motor and a fixed flow rate.

• Flow rate from 0,05 l/h to 200 l/h

• Standard pressure 1 Bar

• Reversible or one-way flow

• Self-priming

• Standard 24V and 230V motors

IPS Peristaltic Pumps

IPS 3

Technical Specification

Explore our detailed product specifications for peristaltic pumps and enhance your technical understanding.

The IPS 3 model is a SELF-PRIMING peristaltic pump with maximum flow rate of 3 l/h, with timed pause/work regulation. It is highly economical, silent, and features an open body design. The pump start is controlled via an external system (Not supplied – Customer Responsibility),

The pump IPS 3 can be supplied in different tube sizes and speeds to fit customer’s needs

Flow-rates range: fixed from 0.5 up to 3 l/h.

Dimensions: 70 x 86 x 60 mm

Weight: 0.6 Kg

Rollers: 2

Reversible Flow: Not available

Maximum pressure 1 Bar. (Available with a 3 Bar pressure capacity, with flow-rate reduction for optimized performance in various applications.)

Tubing material: Teknoprene® Tubes as standard Teknoprene© TPV or Teknoprene© SIL transparent (following International Standards for food contact); upon request Teknoprene© FKM (fluoroelastomer) or Teknoprene© HCR for very high chemical resistances

Standard tubing: 5,8 x 9,3 mm

Suction: 2,0m.

Delivery head: 10,0m.

Motor power: 230 Vac 50 Hz / 5 Watt, upon request 24 Vdc.

Speed Control: with pause/work system (0-7’’) adjustable by potentiometer.

Body material: Glass-reinforced PP

Head Material: Glass-reinforced PP

IP Protection Class Rating: IP00

The compact size, versatility, and cost-effectiveness of the IPS 3 make it ideal for industrial applications by Original Equipment Manufacturers (OEMs) and for agricultural and industrial equipment across various sectors, including:

• Food machinery (dosing of aromas and additives for pastry and bakery products, brine, enzymes and yeast, beverage concentrates and fruit juices, etc.)

• Dosing of detergents, disinfectants and softeners for industrial washing machines, detergents and rinse aids, etc.

• Ink handling (water-based, UV, and more)

• Water treatment systems (acids, flocculants, pH adjustments, coagulants and flocculants, etc.)

Variants Available Upon Request

• Pressure: 3 Bar

• Fixed Flow.

• Available in an IP40 plastic casing, as IPS3_BOX

SPECIAL VERSION FOR O.E.M. WASHING SYSTEM

Detergent and rinse solution dosing for washing machines and dishwashers.

IPS3/DET Detergent dosing peristaltic pump

FLOW-RATE: 0 - 3 lt/h

DELIVERY HEAD: 1 Bar

IPS 3/BRIL Rinse solution dosing peristaltic pump

FLOW-RATE: 0 - 5 lt/h

DELIVERY HEAD: 3 Bar

Peristaltic pumps IPS 3-BOX / TIMER

IPS3-BOX Closed case with IP54 protection class

IPS Peristaltic Pumps

IPS 6

Technical Specification

Explore our detailed product specifications for peristaltic pumps and enhance your technical understanding.

The IPS 6 model is a SELF-PRIMING peristaltic pump with a fixed flow rate, configurable between 0.1 l/h and 30 l/h. The pump start is controlled via an external system (Not supplied – Customer Responsibility), with power supply options of 24 Vdc or 230 VAC.

The pump IPS 6 can be supplied in different tube sizes and speeds to fit customer’s needs

Flow-rates range:fixed standard 6 or 16 l/h, on request from 0.1 up to 30 l/h (max 0.1 Bar).

Dimensions: 85 x 105 x 100 mm

Weight: 0.5 Kg

Rollers: 2

REVERSIBLE FLOW: only with 24 Vdc motor

Maximum pressure 1 Bar. (Available with a 5 Bar pressure capacity, with flow-rate reduction for optimized performance in various applications.)

Tubing material: Teknoprene® Tubes as standard Teknoprene© TPV or Teknoprene© SIL transparent (following International Standards for food contact); upon request Teknoprene© FKM (fluoroelastomer) or Teknoprene© HCR for very high chemical resistances

Standard tubing: 5,8 x 9,3 mm

Suction: 2,0m.

Delivery head: 10,0m.

Motor power: standard 24 Vcc, on request - 230 VAC / 5 Watt

Speed Control: Fixed

Body material: Glass-reinforced PP

Head Material: Glass-reinforced PP

IP Protection Class Rating: IP00

The compact size, versatility, and cost-effectiveness of the IPS 6 make it ideal for industrial applications by Original Equipment Manufacturers (OEMs) and for agricultural and industrial equipment across various sectors, including:

• Food machinery (dosing of aromas and additives for pastry and bakery products, brine, enzymes and yeast, beverage concentrates and fruit juices, etc.)

• Dosing of detergents, disinfectants and softeners for industrial washing machines, detergents and rinse aids, etc.

• Ink handling (water-based, UV, and more)

• Water treatment systems (acids, flocculants, pH adjustments, coagulants and flocculants, etc.)

Variants Available Upon Request:

• Adjustable flow

• Pressure: 3 Bar

• Closed case: IPCS – IPCR RANGE and/or IPL RANGE

IPS Peristaltic Pumps

IPS 10

Technical Specification

Explore our detailed product specifications for peristaltic pumps and enhance your technical understanding.

The IPS10 pump features a fixed flow rate, making it highly economical and completely noiseless. Pump front case includes a convenient lever-operated head opening system, allowing for quick and easy tube replacement with minimal effort. The pump start is controlled via an external system (supplied upon request or in the Customer Responsibility), with power supply options of 24 Vdc.

The pump IPS 10 can be supplied in different tube sizes and speeds to fit customer’s needs

Flow-rates range: : fixed from 19 to 75 ml/min.

Dimensions:

Weight: 0.5 Kg

Rollers: standard 3 rollers, with the quick tube replacement system

Channels: 1

REVERSIBLE FLOW: reversible

Maximum pressure 0.1 Bar.

Tubing material: Teknoprene® Tubes as standard Teknoprene© TPV or Teknoprene© SIL transparent (following International Standards for food contact); upon request Teknoprene© FKM (fluoroelastomer) or Teknoprene© HCR for very high chemical resistances

Standard tubing: 3.2 x 4.8 mm

Suction: 2,0m.

Delivery head: 10,0m.

Motor power: 24 Vcc

Speed Control: Fixed

Body material: Glass-reinforced PA

Head Material: PC

IP Protection Class Rating: IP00

The compact size, versatility, and cost-effectiveness of the IPS 10 make it ideal for industrial applications by Original Equipment Manufacturers (OEMs) and for agricultural and industrial equipment across various sectors, including:

• Food machinery (dosing of aromas and additives for pastry and bakery products, brine, enzymes and yeast, beverage concentrates and fruit juices, etc.)

• Dosing of detergents, disinfectants and softeners for industrial washing machines, detergents and rinse aids, etc.

• Ink handling (water-based, UV, and more)

• Water treatment systems (acids, flocculants, pH adjustments, coagulants and flocculants, etc.)

Variants Available Upon Request:

IPS Peristaltic Pumps

IPS 18

Technical Specification

Explore our detailed product specifications for peristaltic pumps and enhance your technical understanding.

The IPS18 is a pump with a fixed flow rate, featuring a planetary adapter (keyed shaft directly connected to the rollers) and a special snap-on cradle for easy maintenance. The maintenance process is quick and tool-free. With a standard flow rate of 16 l/h, it is highly economical and completely noiseless. The ON/OFF function is controlled by an external system (not supplied). The pump does not have a protective case

The pump IPS 18 can be supplied in different tube sizes and speeds to fit customer’s needs

Flow-rates range: fixed standard 16 l/h, on request from 4 up to 22 l/h

Dimensions: 70 x 72 x 83 mm

Weight: 0.3 Kg

Rollers: 3

REVERSIBLE FLOW: reversible

Maximum pressure 1 Bar. (Available with a 3 Bar pressure capacity, with flow-rate reduction for optimized performance in various applications.)

Tubing material: Teknoprene® Tubes as standard Teknoprene© TPV or Teknoprene© SIL transparent (following International Standards for food contact); upon request Teknoprene© FKM (fluoroelastomer) or Teknoprene© HCR for very high chemical resistances

Standard tubing: 3.5 x 7 mm

Suction: 2,0m.

Delivery head: 10,0m.

Motor power: 24 Vdc / 5 Watt

Speed Control: Fixed

Body material: Glass-reinforced PP

Head Material: PC

IP Protection Class Rating: IP00 - without protective case

The compact size, versatility, and cost-effectiveness of the IPS 18 make it ideal for industrial applications by Original Equipment Manufacturers (OEMs) and for agricultural and industrial equipment across various sectors, including:

• Food machinery (dosing of aromas and additives for pastry and bakery products, brine, enzymes and yeast, beverage concentrates and fruit juices, etc.)

• Dosing of detergents, disinfectants and softeners for industrial washing machines, detergents and rinse aids, etc.

• Ink handling (water-based, UV, and more)

• Water treatment systems (acids, flocculants, pH adjustments, coagulants and flocculants, etc.)

Variants Available Upon Request:

• Pressure: 3 Bar

IPS Peristaltic Pumps

IPS 24

Technical Specification

Explore our detailed product specifications for peristaltic pumps and enhance your technical understanding.

The IPS 24 model is a SELF-PRIMING peristaltic pump with a fixed flow rate, configurable between 0.1 l/h and 8 l/h. The pump start is controlled via an external system (Not supplied – Customer Responsibility), with power supply options of 24 Vdc or 230 VAC.

The pump IPS 24 can be supplied in different tube sizes and speeds to fit customer’s needs

Flow-rates range: fixed from 0.1 up to 8 l/h.

Dimensions: 58 x 86 x 78 mm

Weight: 0.6 Kg

Rollers: 2, upon request 3 or 4 rollers for a more precise dosing.

REVERSIBLE FLOW: only with 24 Vdc motor.

Maximum pressure 1 Bar. (Available with a 3 Bar pressure capacity, with flow-rate reduction for optimized performance in various applications.)

Tubing material: Teknoprene® Tubes as standard Teknoprene© TPV or Teknoprene© SIL transparent (following International Standards for food contact); upon request Teknoprene© FKM (fluoroelastomer) or Teknoprene© HCR for very high chemical resistances

Standard tubing: 4 x 7 mm

Suction: 2,0m.

Delivery head: 10,0m.

Motor power: 24 Vdc or.230 Vac 50 Hz / 5 Watt

Speed Control: Fixed

Body material: Glass-reinforced PP

Head Material: Glass-reinforced PP

IP Protection Class Rating: IP00

The compact size, versatility, and cost-effectiveness of the IPS 24 make it ideal for industrial applications by Original Equipment Manufacturers (OEMs) and for agricultural and industrial equipment across various sectors, including:

• Food machinery (dosing of aromas and additives for pastry and bakery products, brine, enzymes and yeast, beverage concentrates and fruit juices, etc.)

• Dosing of detergents, disinfectants and softeners for industrial washing machines, detergents and rinse aids, etc.

• Ink handling (water-based, UV, and more)

• Water treatment systems (acids, flocculants, pH adjustments, coagulants and flocculants, etc.)

Variants Available Upon Request:

• upon request 3 or 4 rollers for a more precise dosing

• Pressure: 3 Bar

• Reversible Flow: only with 24 Vdc motor.

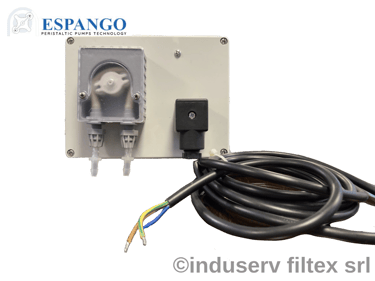

• Available in an IP40 plastic casing, as IPS24_BOX

IPS Peristaltic Pumps

IPS 30

Technical Specification

Explore our detailed product specifications for peristaltic pumps and enhance your technical understanding.

The IPS 30 model is a SELF-PRIMING peristaltic pump with a fixed flow rate, configurable between 1.5 l/h to 70 l/h. The pump start is controlled via an external system (supplied upon request or in the Customer Responsibility), with power supply options of 24 Vdc or 230 VAC.

The pump IPS 30 can be supplied in different tube sizes and speeds to fit customer’s needs

Flow-rates range: : fixed standard 30 l/h, on request from 1,5 - 70 l/h

Dimensions: 85 x 105 x 135 mm

Weight: 0.8 Kg

Rollers: 3, upon request version with 6 rollers

Maximum pressure 1 Bar. (Available with a 3 Bar pressure capacity, with flow-rate reduction for optimized performance in various applications.)

Tubing material: Teknoprene® Tubes as standard Teknoprene© TPV or Teknoprene© SIL transparent (following International Standards for food contact); upon request Teknoprene© FKM (fluoroelastomer) or Teknoprene© HCR for very high chemical resistances

Standard tubing: 7,5 x 10,7 mm

Suction: 2,0m.

Delivery head: 10,0m.

Motor power: 24 Vcc - 230 VAC / 30 Watt

Speed Control: Fixed

Body material: Glass-reinforced PA

Head Material: Glass-reinforced PA

IP Protection Class Rating: IP00

The compact size, versatility, and cost-effectiveness of the IPS 30 make it ideal for industrial applications by Original Equipment Manufacturers (OEMs) and for agricultural and industrial equipment across various sectors, including:

• Food machinery (dosing of aromas and additives for pastry and bakery products, brine, enzymes and yeast, beverage concentrates and fruit juices, etc.)

• Dosing of detergents, disinfectants and softeners for industrial washing machines, detergents and rinse aids, etc.

• Ink handling (water-based, UV, and more)

• Water treatment systems (acids, flocculants, pH adjustments, coagulants and flocculants, etc.)

Variants Available Upon Request:

• Pressure 3 Bar

• Adjustable flow

• version with 6 rollers to obtain high precision and low pulsation

• Double-head to pump different liquids or modify the flow-rate while maintaining the same motor body

• Closed case: IPCS – IPCR RANGE and/or IPL RANGE

• Passant Tube

• Brushless or stepper motor

PERISTALTIC PUMP IPS30 Configurations

Peristaltic Pumps for Challenging Applications

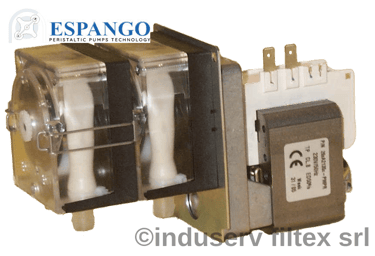

PERISTALTIC PUMP IPS30-TWIN

For applications requiring the simultaneous pumping of two products, Micromix offers a pump with two heads mounted on a single motor.

The heads can be customized with different rollers and tube configurations to match the desired flow rates. Alternatively, two smaller diameter tubes can be installed within a single head.

Please contact us to discuss and customize the configuration of this pump feature to suit your needs.

PERISTALTIC PUMP IPS30-BRUSHLESS

For continuous use, but not particularly heavy-duty, Micromix offers a version with a brushless motor. This motor, without carbon brushes, ensures an almost unlimited lifespan.

Standard speeds are 100 and 200 rpm.

Please contact us to discuss and customize the configuration of this pump feature to suit your needs.

PERISTALTIC PUMP IPS30 "STEPPER"

When precise flow, adjustability, low noise, and long motor life are essential, a stepper motor provides optimal performance.

With adjustable speeds ranging from 1 to 250 rpm, 24V power, and the ability to operate at very low flow rates, it offers maximum versatility for designers.

Please contact us to discuss and customize the configuration of this pump feature to suit your needs.

PERISTALTIC PUMP IPS30 BOX IPL10/30

When a pump with a protective case is needed, Micromix offers a pump enclosed in a practical IP40 plastic case.

An ON/OFF switch can be added upon request. The IPL10/30 model is also available with panel controls for speed adjustment, flow direction, and remote pump start.

Please contact us to discuss and customize the configuration of this pump feature to suit your needs.

IPS Peristaltic Pumps

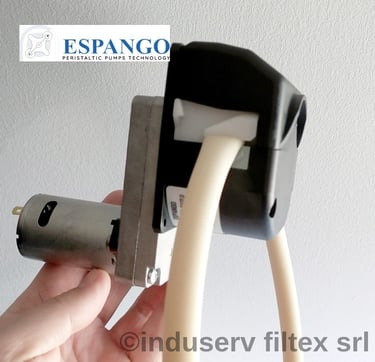

IPS 100

Technical Specification

Explore our detailed product specifications for peristaltic pumps and enhance your technical understanding.

The IPS 100 model is a SELF-PRIMING peristaltic pump with a fixed flow rate, configurable between 0.5 l/h to 100 l/h. The pump start is controlled via an external system (supplied upon request or in the Customer Responsibility), with power supply options of 24 Vdc or 230 VAC.

The pump IPS 100 can be supplied in different tube sizes and speeds to fit customer’s needs

Flow-rates range: : fixed standard 100 l/h, on request from 0,5 - 100 l/h

Dimensions: 86 x 117 x 162 mm

Weight: 0.5 Kg

Rollers: 3, with the quick tube replacement system

Channels: 1

Maximum pressure 1 Bar. (Available with a 3 Bar pressure capacity, with flow-rate reduction for optimized performance in various applications.)

Tubing material: Teknoprene® Tubes as standard Teknoprene© TPV or Teknoprene© SIL transparent (following International Standards for food contact); upon request Teknoprene© FKM (fluoroelastomer) or Teknoprene© HCR for very high chemical resistances

Standard tubing: 8 x 12 mm

Suction: 2,0m.

Delivery head: 10,0m.

Motor power: 24 Vcc - 230 VAC / 30 Watt

Speed Control: Fixed

Body material: Glass-reinforced PA

Head Material: Glass-reinforced PA

IP Protection Class Rating: IP00

The compact size, versatility, and cost-effectiveness of the IPS 100 make it ideal for industrial applications by Original Equipment Manufacturers (OEMs) and for agricultural and industrial equipment across various sectors, including:

• Food machinery (dosing of aromas and additives for pastry and bakery products, brine, enzymes and yeast, beverage concentrates and fruit juices, etc.)

• Dosing of detergents, disinfectants and softeners for industrial washing machines, detergents and rinse aids, etc.

• Ink handling (water-based, UV, and more)

• Water treatment systems (acids, flocculants, pH adjustments, coagulants and flocculants, etc.)

Variants Available Upon Request:

• Adjustable flow

• Closed case: IPCS – IPCR RANGE and/or IPL RANGE

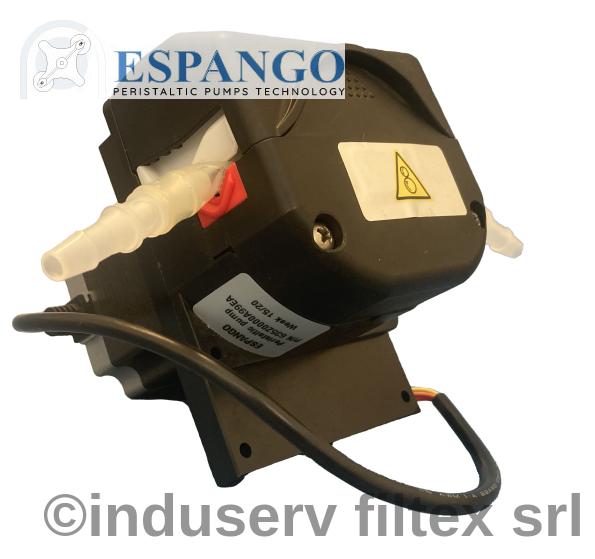

PERISTALTIC PUMP IPS100 Configurations

Peristaltic Pumps for Challenging Applications

PERISTALTIC PUMP IPS100 BRUSHLESS

For continuous use, but not particularly heavy-duty, Micromix offers a version with a brushless motor. This motor, without carbon brushes, ensures an almost unlimited lifespan.

Standard speeds are 100 and 200 rpm.

Please contact us to discuss and customize the configuration of this pump feature to suit your needs.

PERISTALTIC PUMP IPS100 "STEPPER"

When precise flow, adjustability, low noise, and long motor life are essential, a stepper motor provides optimal performance.

With adjustable speeds ranging from 1 to 250 rpm, 24V power, and the ability to operate at very low flow rates, it offers maximum versatility for designers.

Please contact us to discuss and customize the configuration of this pump feature to suit your needs.

PERISTALTIC PUMP IPS100 BOX IPL10/100

When a pump with a protective case is needed, Micromix offers a pump enclosed in a practical IP40 plastic case.

An ON/OFF switch can be added upon request.The IPL10/100 model is also available with panel controls for speed adjustment, flow direction, and remote pump start.

Please contact us to discuss and customize the configuration of this pump feature to suit your needs.

IPS Peristaltic Pumps

IPS 200

Technical Specification

Explore our detailed product specifications for peristaltic pumps and enhance your technical understanding.

The IPS 200 model is a SELF-PRIMING peristaltic pump with a fixed flow rate, configurable between 11 l/h to 200 l/h. The pump start is controlled via an external system (supplied upon request or in the Customer Responsibility), with power supply options of 24 Vdc or 230 VAC.

The pump IPS 200 can be supplied in different tube sizes and speeds to fit customer’s needs

Flow-rates range: : fixed standard 200 l/h, on request from 11 - 200 l/h

Dimensions: 120 x 130 x 120 mm

Weight: 1.0 Kg

Rollers: 2

Channels: 1

Maximum pressure 1 Bar. (Available with a 2 Bar pressure capacity, with flow-rate reduction for optimized performance in various applications.)

Tubing material: Teknoprene® Tubes as standard Teknoprene© TPV or Teknoprene© SIL transparent (following International Standards for food contact); upon request Teknoprene© FKM (fluoroelastomer) or Teknoprene© HCR for very high chemical resistances

Standard tubing: 8 x 12 mm

Suction: 2,0m.

Delivery head: 10,0m.

Motor power: 24 Vcc - 230 VAC / 30 Watt

Speed Control: Fixed

Body material: Glass-reinforced PP

Head Material: Glass-reinforced PP

IP Protection Class Rating: IP00

The compact size, versatility, and cost-effectiveness of the IPS 200 make it ideal for industrial applications by Original Equipment Manufacturers (OEMs) and for agricultural and industrial equipment across various sectors, including:

• Food machinery (dosing of aromas and additives for pastry and bakery products, brine, enzymes and yeast, beverage concentrates and fruit juices, etc.)

• Dosing of detergents, disinfectants and softeners for industrial washing machines, detergents and rinse aids, etc.

• Ink handling (water-based, UV, and more)

• Water treatment systems (acids, flocculants, pH adjustments, coagulants and flocculants, etc.)

Variants Available Upon Request:

• Adjustable flow

• Closed case: IPCS – IPCR RANGE and/or IPL RANGE

Industry Sectors and Applications

Explore the diverse industry sectors and applications where our products provide reliable, efficient, and cost-effective solutions.

From manufacturing and agriculture to specialized industrial equipment, the wide range of high-quality products and solutions supplied by Micromix is designed to meet the unique demands of each sector, ensuring optimal performance and versatility.

• Industrial Processing and Research Laboratories: handling and filling of products, from aggressive to delicate and/or foaming

• Food Processing Equipment: dosing of aromas and additives for pastry and bakery products, beverage concentrates and fruit juices

• Oenology: dosage of enzymes and sulphur dioxide

• Dairy and Milk processing: Dosing of Starter Cultures (Bacterial Cultures), Rennet, Whey, Acidulants, Yeast, and Milk Storage Tank Disinfection

• Ice machines: brine dosing to adjust ice consistency

• Detergence: dosing of detergents and rinse aids for glasswashers and dishwashers

• Washing: dosing of detergents, disinfectants and softeners for industrial washing machines

• Agriculture: dosing of disinfectants, enzymes and fertilisers

• Printing: dosing of water-based and UV inks

• Aromas: dosage for aromatherapy, saunas, steam and experience showers, room scenting

• Swimming pool maintenance; dosing of chlorine or other chemicals as acids and pH adjustment

• Waste water treatment: dosage of enzymes and disinfectants for bacterial load reduction (legionella)

• Dosage: Commonly dosed liquids are acids, bases, alkalis, oils, aromas, suspensions of products also containing impurities, solid particles and viscous liquids

• Handling: peristaltic pumps are the optimal choice for handling viscous or foaming liquids, as well as liquids containing impurities such as sand, stones, granules and vegetal components (algae)

• Suction and sampling: peristaltic pumps, with their excellent suction capacity, allow the user to set up sampling and analysis systems in a simple and effective way

• Filling: of food, medical, pharmaceutical and industrial products. In particular, they are used in bottling lines for aromas, acids, bases and, in general, foaming liquids or liquids containing suspended impurities

• Transfer: peristaltic pumps are the optimal choice for transferring wine, musts, alcoholic products, as well as viscous, foaming and impurity-containing liquids

• Cleaning-in-Place (CIP) Systems; In industries such as food and beverage, peristaltic pumps are used in CIP systems to circulate cleaning solutions through pipes, tanks, and other equipment, ensuring thorough sanitation without disassembly.

INDUSTRY SECTORS

APPLICATIONS

Product Features

Explore the key features of our product range, designed to ensure efficiency and reliability across a variety of applications.

Customer Success Stories

Explore customer experiences with our product range and innovative solutions, driving success across diverse industries.

micromix_Teknoprene® Tubes for Peristaltic Pumps_EN.pdf

Explore More Products

You May Be Interested In

Peristaltic pumps

self-priming, reversibility, easy and quick maintenance and sterilization, no stress to the pumped liquid...

Peristaltic pump tubing

range of four different products to suit all possible applications and allows peristaltic pump users wide versatility with all chemicals...

Tension/compression load cell

ideal for tanks, hoppers, weighing belts, asphalt and concrete plants, force measurement...
