Micromix: Your Local Partner for Advanced Storage Systems

As a valued partner of Micromix, Scutti Srl is a leading manufacturer specializing in bulk storage and handling solutions, with a focus on cement and lime. With decades of expertise, Scutti designs and produces high-quality silos, screw conveyors, dust filters, and safety systems, offering innovative, efficient, and reliable solutions for the storage and transportation of dry bulk materials.

Micromix: Innovative Bulk Storage Silos

Versatility and customisation

As a trusted supplier of Scutti products, Micromix delivers innovative, tailored solutions for industries such as cement, mining, and chemical processing. Scutti’s silos, screw conveyors, and dust filters are customized to meet specific needs, ensuring optimal performance. With a focus on compliance with industry standards, these versatile solutions offer fast delivery and reliable support for both large-scale and specialized bulk material storage projects.

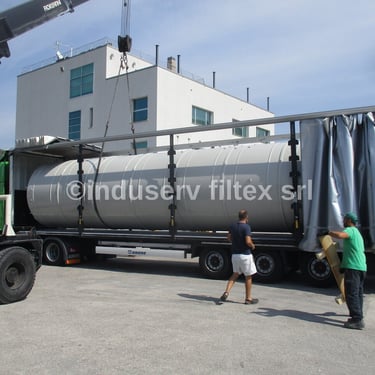

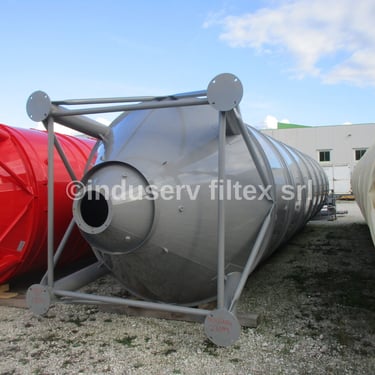

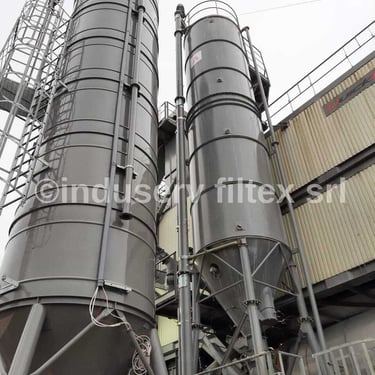

Monolithic Storage Silo

Monolithic storage silos are fully manufactured in Italy. These silos are completely welded, with the exception of the legs, which are supplied bolted. The metal sheets for the silo body are rolled, welded, and painted in the workshop. Designed for storing dry, free-flowing powders, these silos can be customized with higher legs, a 60° cone, special paint, and various accessories. Known for their rapid installation and optimized logistics, they offer flexibility for different project needs.

Available diameters:

• Ø2160 mm (for container shipment)

• Ø2500 mm and Ø3000 mm (for transport by lorries)

Capacity:

From 15 to 85 m³.

SME Series

Monolithic steel silos Ø 2160

Technical Specification

Explore Micromix's detailed product specifications for storage solutions and deepen your technical knowledge.

• External diameter: Ø2160

• Capacity: from 18 to 40 m3

• Total height: from 7620 to 13445 mm

• Standard discharge height: 1500 mm

• Footprint: 1850x1850mm

SM Series

Monolithic steel silos Ø 2500

• External diameter: Ø2380

• Capacity: from 23 to 55 m3

• Total height: from 7695 to 15050 mm

• Standard discharge height: 1500 mm

• Footprint: 2000x2000mm

SM Series

Monolithic steel silos Ø 3000

• External diameter: Ø2860

• Capacity: from 65 to 85 m3

• Total height: from 12555 to 16135 mm

• Standard discharge height: 1500 mm

• Footprint: 2000x2000mm

Contact Us

...for more questions and specifications regarding industrial mixers and equipment for handling powders, bulk solids and liquids.

Telescopic steel silos

Vertical cylindrical silo with a body made of two bolted sections, one with a smaller diameter to fit inside the other, optimizing transport costs.

The compact design allows for the transportation of two silos in one container or on a single lorry. Additionally, the space inside the silo can be used to load other equipment.

The silo is fully welded, with only one bolted flange dividing the body in half for easy assembly, making installation quick and efficient.

Available diameters:

• Ø2160 mm (for container shipment)

• Ø2500 mm (for transport by lorries)

Capacity:

From 23 to 68 m³

STE Series

Telescopic steel silos Ø 2160

Technical Specification

Explore Micromix's detailed product specifications for storage solutions and deepen your technical knowledge.

• External diameter: Ø2160/2060

• Capacity: from 23 to 43 m3

• Total height: from 9000 to 15395 mm

• Standard discharge height: 1500 mm

• Footprint: 1850x1850mm

ST Series

Telescopic steel silos Ø 2500

• External diameter: Ø2380/2280

• Capacity: from 29 to 68 m3

• Total height: from 9195 to 18550 mm

• Standard discharge height: 1500 mm

• Footprint: 2000x2000mm

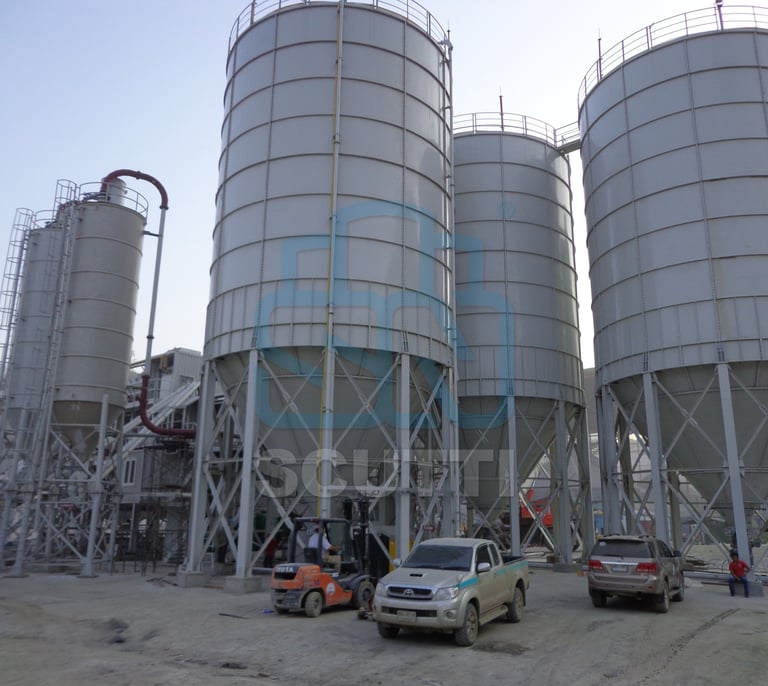

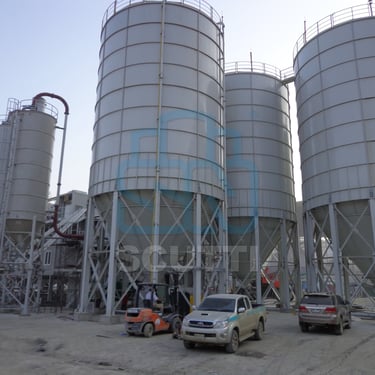

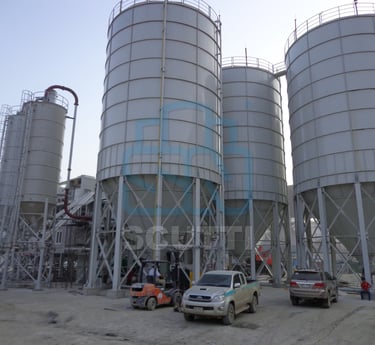

Bolted Panel Silos

Bolted panel silos are ideal for storing a variety of materials with different granulometry and bulk density, and are designed to accommodate projects of any size.

With high manufacturing precision and closed-cell mousse seals, these silos are fully watertight, making them suitable for storing slurries in water treatment plants.

Their easy transportability by truck or container, along with a modular design, ensures quick and straightforward on-site installation.

Available diameters:

• Ø3500 / Ø5000 / Ø6150 / Ø7600 / Ø9500 / Ø12500 mm

Capacity:

From 50 to 5000 m3.

SP Series

Bolted panel silos Ø 3500

Technical Specification

Explore Micromix's detailed product specifications for storage solutions and deepen your technical knowledge.

• External diameter: Ø3500

• Capacity: from 50 to135 m3

• Total height: from 8520 to 18080 mm

• Standard discharge height: 1500 mm

• Footprint: 2450x2450mm

SP Series

Bolted panel silos Ø 5000

• External diameter: Ø5000

• Capacity: from 140 to 275 m3

• Total height: from 11060 to 19460 mm

• Standard discharge height: 1500 mm

• Footprint: Ø4880mm

SP Series

Bolted panel silos Ø 6150

• External diameter: Ø6150

• Capacity: from 215 to 450 m3

• Total height: from 11600 to 20690 mm

• Standard discharge height: 1500 mm

• Footprint: Ø6150mm

SP Series

Bolted panel silos Ø 7600

• External diameter: Ø7600

• Capacity: from 350 to 770 m3

• Total height: from 13145 to 23725 mm

• Standard discharge height: 1500 mm

• Footprint: Ø7610mm

SP Series

Bolted panel silos Ø 9500

• External diameter: Ø9500

• Capacity: from 600 to 1450 m3

• Total height: from 14410 to 28265 mm

• Standard discharge height: 1500 mm

• Footprint: Ø9500mm

SP Series

Bolted panel silos Ø 12500

• External diameter: Ø12500

• Capacity: from 1800 to 3000 m3

• Total height: from 22580 to 31580 mm

• Standard discharge height: 1500 mm

• Footprint: Ø12380mm

Contact Us

...for more questions and specifications regarding industrial mixers and equipment for handling powders, bulk solids and liquids.

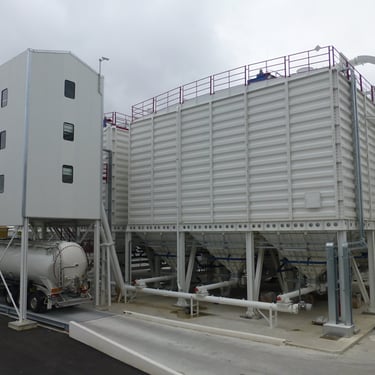

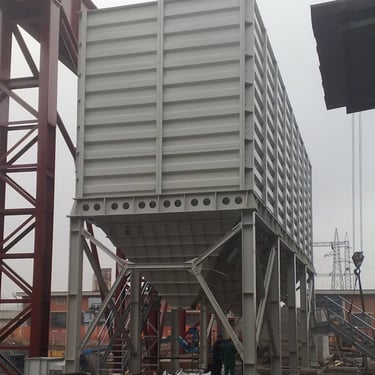

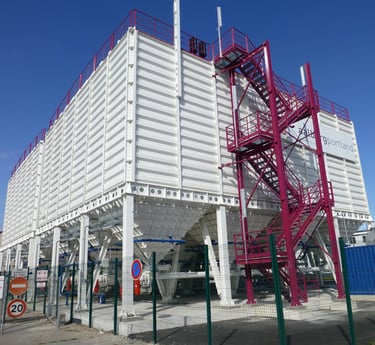

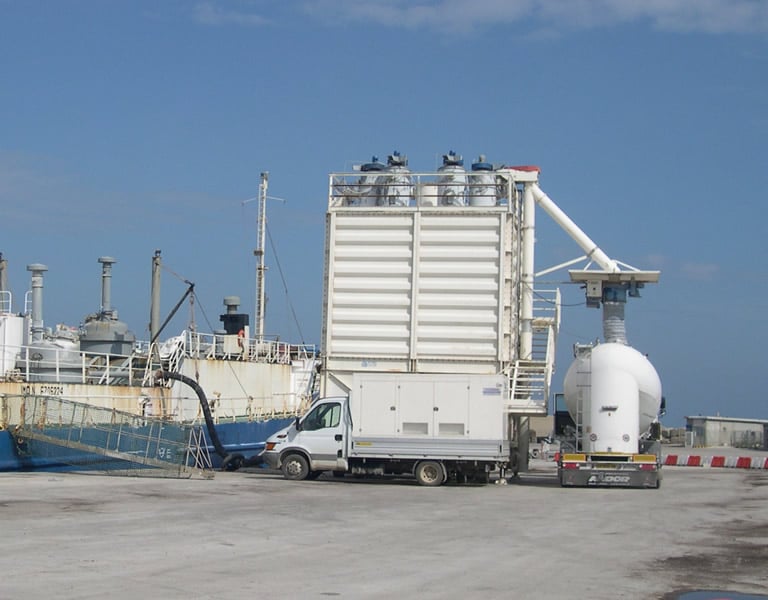

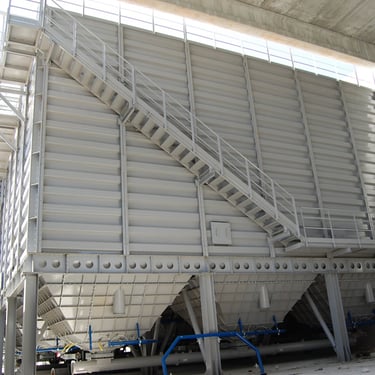

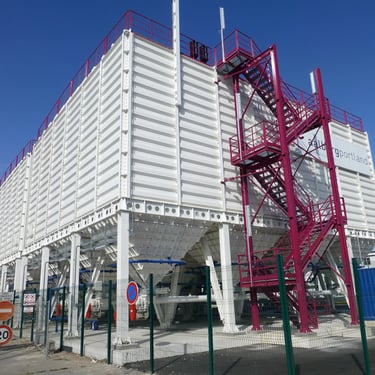

Modular flat silos

The HC Rectangular silos feature a compact modular design, making them suitable for installation on harbor docks or inside buildings. With a total height of up to 14 meters, they comply with height restrictions. All components are bolted, ensuring quick and easy transportation and installation.

For limited space, the square silo system is recommended, as it allows for 25% more storage capacity on the same footprint.

The extendable modular square silo system offers maximum flexibility for future expansions or cellular divisions to meet evolving production needs.

Square silos provide better accessibility for inspection, maintenance, and machinery repairs. The modular storage system consists of HC-type rectangular silos, each with a capacity of 1400 m³.

Capacity:

modular plant composed of one or more HC silos by 1400 m3 each

HC Modular flat silos

Technical Specification

Explore Micromix's detailed product specifications for storage solutions and deepen your technical knowledge.

The flat storage terminal is a modular plant, composed of one or more HC silos, each with a capacity of 1400 m³, tailored to customer needs. Equipped with a cement extraction system via tubular screw conveyors, it feeds a loading bellow for discharging into all types of tank lorries, with an unloading capacity of up to 140 tons/hour per discharge point. On request, it can also include a cell system for cement weighing before unloading.

Advantages:

• Excellent investment/volume storage ratio

• Compliance with stringent harbour regulations

• Uniform weight distribution, minimizing civil work requirements

• Overall height of 14 meters, meeting height restrictions

• Modular design for future expansion

• Movable structure for easy installation and disassembly

• Dust-free operation thanks to de-dusting system

• Low operating costs due to simple process engineering requiring no qualified workers

Buffer Silo SR 105

The SR 105 is a buffer silo designed for efficient transfer between a ship and bulk cement trucks. With a capacity of 105 m³, it is equipped to safely and ecologically manage material transfer, allowing for up to three trucks to be filled consecutively. While the silo feeds from the ship, the trucks can be filled simultaneously. This quadrangular silo, constructed from S235R steel, has dimensions of 5,300 mm x 5,300 mm with a height of 7,500 mm, providing seamless integration for cement transfer at port facilities.

Contact Us

...for more questions and specifications regarding industrial mixers and equipment for handling powders, bulk solids and liquids.

Industry Sectors and Applications

Explore the diverse industry sectors and applications where our products provide reliable, efficient, and cost-effective solutions.

From manufacturing and agriculture to specialized industrial equipment, the wide range of high-quality products and solutions supplied by Micromix is designed to meet the unique demands of each sector, ensuring optimal performance and versatility.

• Cement Industry – Storing cement, gypsum, and other powdered materials to ensure secure and efficient storage, preventing contamination and maintaining product quality.

• Agriculture – Storing grains, seeds, and animal feed to maintain quality and provide airtight environments that reduce spoilage.

• Food and Beverage – Storing dry ingredients like flour, sugar, starch, and other powders to ensure safe and contamination-free storage before processing or packaging.

• Chemical Manufacturing – Storing powders, resins, polymers, and other dry chemicals to prevent moisture absorption and contamination.

• Pharmaceuticals – Storing bulk powders, granules, or granular materials in a controlled environment, ensuring product integrity and industry compliance.

• Mining and Minerals – Storing minerals, ores, sand, and other granular materials, maintaining the flow of materials during extraction and processing while protecting against contamination and moisture.

• Plastic Industry – Storing plastic pellets, powders, or additives, keeping materials free from moisture and contamination before manufacturing.

• Power Generation – Storing bulk powders like coal dust or fly ash, ensuring smooth material handling and transportation to power plants for combustion.

• Recycling Industry – Storing recycled powders, granules, and materials like plastics, optimizing handling and sorting processes for recycling plants.

• Building Materials – Storing bulk powdered materials such as sand, lime, and cement additives, ensuring efficient material management in construction and manufacturing.

• Textile Industry – Storing raw materials like cotton, wool, synthetic fibers, and other granular materials, maintaining material quality and preventing contamination.

• Petrochemical Industry – Storing bulk powders and dry materials, ensuring proper material handling and safety during storage.

• Cement Production – Storing bulk cement, additives, and other powdered materials for efficient processing and transportation.

• Grain Storage – Storing grains such as wheat, corn, and rice, protecting them from environmental factors and preserving their quality.

• Animal Feed – Storing dry animal feed and other agricultural products to ensure proper storage and easy access for distribution.

• Sugar Processing – Storing sugar and sugar by-products, ensuring bulk storage while preventing moisture contamination.

• Pharmaceuticals – Storing bulk pharmaceutical powders and granules to maintain quality control during production.

• Fertilizer Production – Storing dry fertilizer materials such as urea, ammonium nitrate, and phosphate to ensure easy handling and precise distribution.

• Plastic Manufacturing – Storing plastic pellets, resins, and additives to ensure organized storage and prevent contamination.

• Food Processing – Storing dry food ingredients like flour, starch, and powdered milk for easy handling and processing.

• Mining and Minerals – Storing sand, gravel, and crushed minerals for further processing or transportation.

• Recycling Facilities – Storing recyclables like plastics, metals, and paper in bulk before sorting and processing.

• Construction Materials – Storing sand, cement, and other building materials in silos to ensure a steady supply for construction projects.

• Wood Pellets – Storing wood pellets for bioenergy production, ensuring secure storage of biomass materials before combustion.
