Micromix: Your local partner for WAM Group industrial mixing solutions.

MAP, the industrial mixing technology division of WAMGROUP, offers a range of solutions including Horizontal Single Shaft Mixers, Ribbon Blenders, Twin Shaft Paddle Mixers, Dust Conditioners, and Laboratory Mixers.

Industrial Powder Mixers and Blenders

Reliable, Energy-Efficient Mixers

WAMGROUP mixers provide reliable, high-performance solutions for industrial applications. Designed for efficient, consistent mixing, they enhance productivity, reduce downtime, and minimize maintenance. Built for durability, these mixers ensure long-term reliability, helping customers achieve uniform results and optimize their processes for blending and mixing of powders, bulk solids, and liquids.

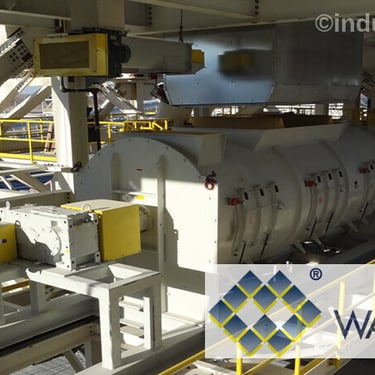

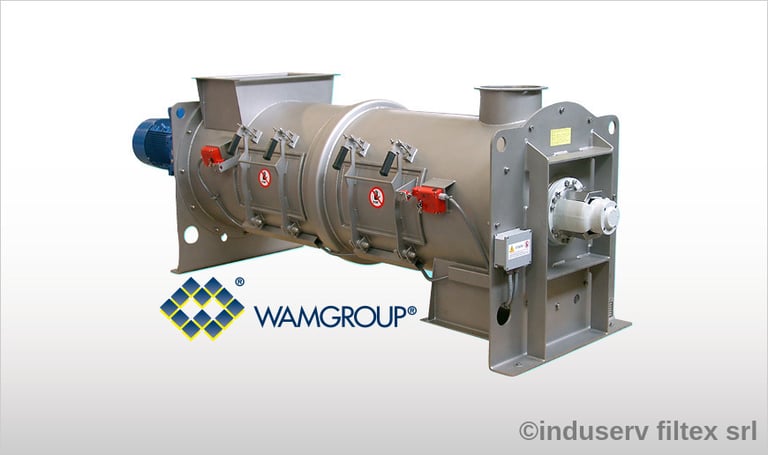

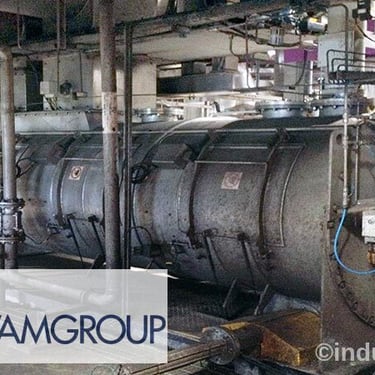

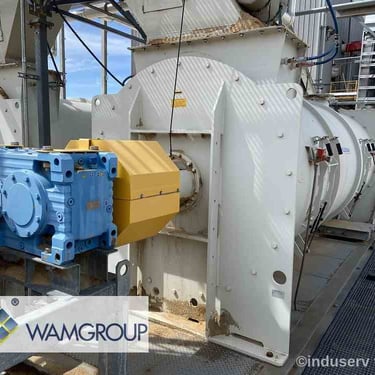

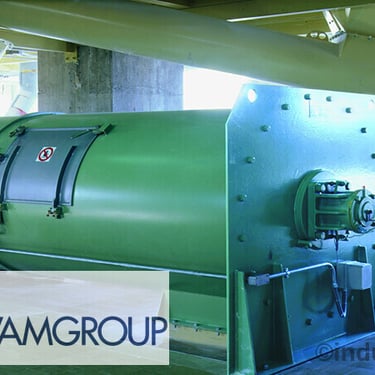

WAH Series

Continuous Single Shaft Industrial Mixers

Consistent Mixing Quality

• Capacity: 2 ~ 1,000 m³/h (1.2 to 590 cfm), depending on recipe and mixer configuration

• Liquid Addition: Up to 20% liquid can be added

• Seals: Air or nitrogen-purged shaft seals or grease sealing options for end bearing assemblies

• Heavy-Duty Construction: Mixing chamber made from carbon steel, anti-wear steel, or 304L/316L stainless steel

• Surface Finish: Stainless steel with grit silking, mirror polishing, or glass bead blasting

• Mixing Tools: Wide range available, including ploughshare, toothed ploughshare, blade-type, and toothed blade, with optional anti-wear coating

Technical Specification

Explore our detailed product specifications and enhance your technical understanding of equipment for handling and mixing powders, bulk solids, and liquids in industrial applications.

The WAH Continuous Single Shaft Mixer features ploughshares or inclined blade-type shovels inside the drum, rotating in a precise arrangement to create turbulence. This ensures continuous movement of all product particles during mixing, preventing dead spots or slow-moving zones and guaranteeing uniform, precise results.

For enhanced mixing, high-speed choppers can be added as an optional feature.

Benefits

• Maximum mixing homogeneity

• No product damage

• Low maintenance requirements

• Long-lasting durability

• Power rating tailored to the application

• High uptime and reliability

• Expert mixing knowledge and test facilities available

Available Options Upon Request

• Special anti-wear surface treatments (anti-wear liner, wear-resistant coating with replaceable tiles, ceramic liner, Teflon® liner, stainless steel mesh)

• High-speed choppers for enhanced mixing

• Equipment for liquid supply integration

• Pneumatic sampling device for easy material collection

• Pneumatic control panel for streamlined operation

• Heating/cooling jacket for mixing chamber temperature control

• PT100 temperature probe for precise monitoring of jacketed mixing chamber temperature

Technical Specifications

Description
WAH Continuous Horizontal Single Shaft Industrial Mixers feature a cylindrical mixing drum with an inlet at one end, an outlet at the opposite end, and a venting spout. The mixer includes a full material mixing shaft, two drum end plates with flanged bearing assemblies, and integrated air or gas-purged shaft seals. A drive unit with power transmission completes the system.

Function
The Continuous WAH Industrial Mixers operate based on a mechanically generated fluid bed. Ploughshare or shovel-shaped mixing tools rotate near the horizontal, cylindrical drum casing, lifting the components from the product bed into the open mixing area. The desired mixture quality is achieved before the product reaches the outlet.

These mixers are ideal for dry bulk solids (powders, granules, short fibers), dry bulk solids with liquids (moistening and granulating), sludge, or low-viscosity pastes.

Features

• Capacity: 2 ~ 1,000 m³/h (1.2 to 590 cfm), depending on recipe and mixer configuration

• Liquid Addition: Up to 20% liquid can be added

• Seals: End bearing assemblies with air or nitrogen-purged shaft seals, or grease sealing options

• Construction: Heavy-duty mixing chamber made from carbon steel, anti-wear steel, or 304L/316L stainless steel

• Surface Finish: Stainless steel options include grit silking, mirror polishing, or glass bead blasting

• Mixing Tools: Wide selection of tools (ploughshare, toothed ploughshare, blade-type, toothed blade), with optional anti-wear coating available

Contact Us

...for more questions and specifications regarding industrial mixers and equipment for handling powders, bulk solids and liquids.

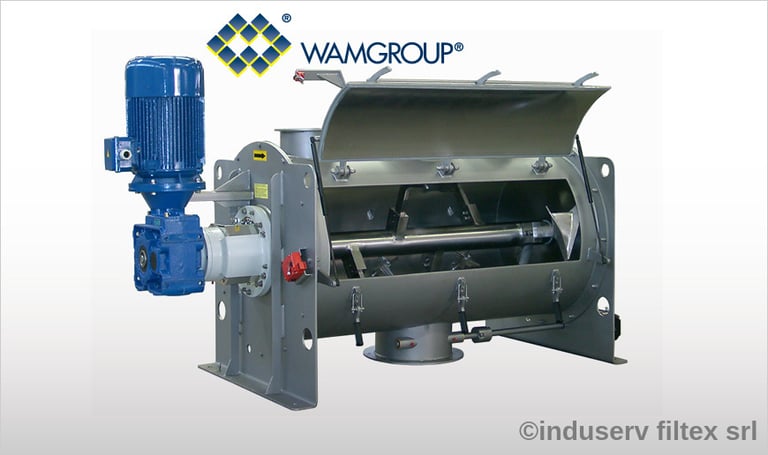

WBH Series

Batch-Type Single-Shaft Industrial Mixers

Efficient, reliable mixing solutions for consistent results in batch processing.

• Capacity: 10 to 20,000 liters per batch

• Mixing ratio: 1/100,000

• Variation coefficient (CV): 3 ~ 5%

• Up to 20% liquid addition capability

• End bearing assemblies with air/nitrogen-purged shaft seals or grease sealing

• Heavy-duty mixing chamber in carbon steel, anti-wear steel, or 304L/316L stainless steel

• Stainless steel surface finish options: grit silking, mirror polishing, glass bead blasting

• Wide range of mixing tools: boxed ploughshare, toothed ploughshare, blade, toothed blade (anti-wear coating optional)

Technical Specification

Explore our detailed product specifications and enhance your technical understanding of equipment for handling and mixing powders, bulk solids, and liquids in industrial applications.

The mixing tools of the WBH Horizontal Single Shaft Industrial Batch Mixers, such as ploughshare or inclined blade-type shovels, are arranged in a specific pattern on the shaft inside the horizontal drum based on the application requirements. This design creates turbulence, ensuring uniform product involvement throughout the mixing process. It prevents dead spots and slow-moving areas, delivering precise and efficient mixing.

For improved performance, high-speed choppers can be added, providing extra mixing action when needed.

Benefits

• No product deterioration or damage

• Low maintenance requirements

• Durable and reliable machine

• Power rating tailored to the application

• Easy cleaning with full access to internal components

• Extensive mixing expertise and test facilities

Available Options Upon Request

• Special anti-wear surface treatments (anti-wear liner, replaceable wear-resistant tiles, ceramic liner, Teflon liner, stainless steel mesh)

• High-speed choppers

• Liquid injection system

• Pneumatic sampling device

• Pneumatic control panel

• Heating/cooling jacketed mixing chamber

• PT 100 temperature probe for jacketed mixing chamber

Technical Specifications

Description
WBH Horizontal Single Shaft Industrial Batch Mixers feature a cylindrical mixing drum with an inlet, outlet (with discharge valve), and a venting spout. The unit is equipped with a full material mixing shaft, two drum-end plates, and flanged end bearing assemblies with integrated air or gas-purged shaft seals. A drive unit with power transmission ensures operation.

Function
The WBH Horizontal Single Shaft Industrial Batch Mixer operates on the principle of mechanical fluidization. The unique shape, position, and rotation speed of the mixing tools create a centrifugal vortex, which projects materials in a three-dimensional motion, allowing them to merge efficiently. This ensures that ingredients with varying particle sizes and bulk densities are blended with high precision in the shortest time possible.

WBH Batch-type Industrial Mixers are ideal for mixing dry powders, granules, or short fibers, as well as moistening, agglomerating, or granulating these materials, or for mixing liquids and low-viscosity pastes.

Features

• Capacity: 10 to 20,000 liters per batch

• Mixing ratio: 1/100,000

• Variation coefficient (CV): 3 ~ 5%

• Liquid addition: Up to 20%

• End bearing assemblies: Various air or nitrogen-purged shaft seals or grease sealing

• Heavy-duty mixing chamber: Manufactured from carbon steel, anti-wear steel, or 304L / 316L stainless steel

• Stainless steel surface finishes: Grit silking, mirror polishing, glass bead blasting

• Wide range of mixing tools: Boxed ploughshare, toothed ploughshare, blade, toothed blade-type, with optional anti-wear coating

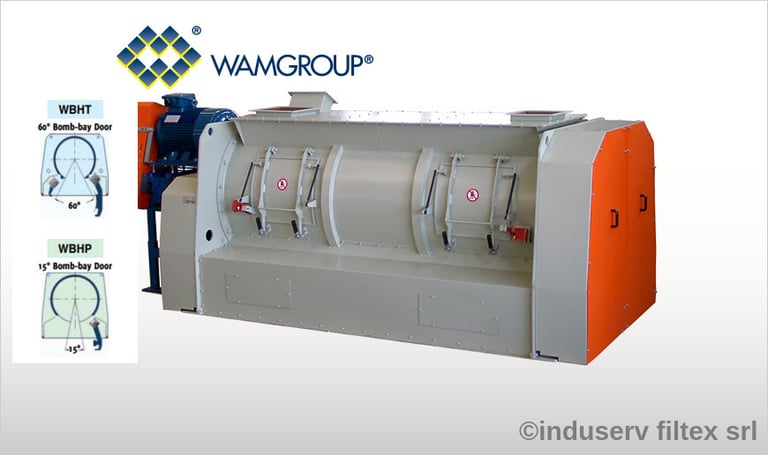

WBHP - WBHT Series

Batch-Type Single-Shaft Industrial Mixers with Quick-Release Discharge Doors

Product discharge in the shortest time with minimal residue remaining.

• Capacity: 165 ~ 20,000 litres per batch

• Mixing ratio: 1/100,000

• Variation coefficient (CV): between 3 and 5

• Liquid addition: Up to 20%

• End bearing assemblies: Air or nitrogen-purged shaft seals or grease sealing options

• Heavy-duty mixing chamber: Manufactured from carbon steel, anti-wear steel, or 304L / 316L stainless steel

• Stainless steel surface finishing: Grit silking, mirror polishing, glass bead blasting

• Wide range of mixing tools: Boxed ploughshare, toothed ploughshare, blade, toothed blade-type (available with anti-wear coating upon request)

Technical Specification

Explore our detailed product specifications and enhance your technical understanding of equipment for handling and mixing powders, bulk solids, and liquids in industrial applications.

In addition to the standard features of WBH industrial mixers, the WBHP and WBHT models provide rapid product discharge with residue levels of less than 0.1%, depending on the product being mixed. The bomb-bay discharge mechanism is essential for applications where discharge time must be minimized.

For improved performance, high-speed choppers can be added, providing extra mixing action when needed.

Benefits

• Short mixing time (1 ~ 4 min)

• Maximum mixing homogeneity

• Excellent reproducibility of batches

• No product deterioration or damage

• Low maintenance

• Durable machine

• Power rating adapted to application

• Easy cleaning and access to all internal parts of the mixer

• Mixing know-how and test facilities

Available Options Upon Request

• Special anti-wear surface treatment (anti-wear liner, easily replaceable wear-resistant tile coating, ceramic liner, Teflon liner, stainless steel mesh)

• High-speed choppers

• Liquid injection device

• Pneumatic sampling device

• Pneumatic control panel

• Heating/cooling jacketed mixing chamber

• PT 100 temperature probe on jacketed mixing chamber

Technical Specifications

Description
The rapid-release discharge Industrial Batch Mixers of the WBHP type, featuring a 15° opening cross-section, and the WBHT type with a 60° opening, meet the highest customer requirements for quality mixing in batch processes focused on optimized efficiency. The full-length outlet opening of the mixing drum ensures nearly residue-free product discharge in the shortest possible time.

Function
WBHP / WBHT rapid-release discharge Industrial Batch Mixers are the ideal mixing machines for virtually all industries (building and construction, food, animal feed, chemicals, etc.), where the highest possible mixing quality and optimum productivity are essential.

WBH Batch-type Industrial Mixers are ideal for mixing dry powders, granules, or short fibers, as well as moistening, agglomerating, or granulating these materials, or for mixing liquids and low-viscosity pastes.

Features

• Capacity: 165 ~ 20,000 litres per batch

• Mixing ratio: 1/100,000

• Variation coefficient (CV): between 3 and 5

• Possibility of adding up to 20% of liquid

• End bearing assemblies with various types of air or nitrogen-purged shaft seals or grease sealing

• Heavy-duty mixing chamber manufactured from carbon steel, anti-wear steel, or 304L / 316L stainless steel

• Stainless steel surface finishing: grit silking, mirror polishing, glass bead blasting

• Wide range of mixing tools (boxed ploughshare, toothed ploughshare, blade, toothed blade-type), available with anti-wear coating on request

WBH Lithium

Single-Shaft Ploughshare Industrial Mixers for Secondary Battery Industry

The WBH Lithium High-Efficiency Ploughshare Industrial Mixer is the perfect solution for achieving the highest quality mixtures in consistently reproducible batches.

• Capacity: 75 ~ 25,000 litres (2.6 ~ 880 cu ft) per batch

• Mixing ratio: 1/100,000

• Optional liquid addition

• Manufactured from 304L / 316L stainless steel

• Pneumatic control panel

• End bearing assemblies with special patented shaft seals for battery powder

• Adjustable, replaceable mixing tools

• Different inlet options

• Heavy-duty mixing chamber manufactured from 304L / 316L stainless steel

• Inspection door for comfortable access to the interior

• Flush discharge valve

• Choppers: Tulip-type and Blade-type

• Wear and corrosion-resistant ceramic-tile chamber lining

• Special outlet with cleaning system

• Specially coated ploughshare tools

Technical Specification

Explore our detailed product specifications and enhance your technical understanding of equipment for handling and mixing powders, bulk solids, and liquids in industrial applications.

WBH Lithium ensures fast and efficient mixing with low energy consumption and minimal wear on components, making it cost-effective in the long term. It is easy to clean, maintain, and provides high precision, making it ideal for the secondary battery industry.

The WBH Lithium mixer offers a capacity range from 75 to 25,000 liters per batch, with precision mixing achieved through mechanical fluidization. It features durable construction from 304L/316L stainless steel, and offers optional liquid addition and various inlet configurations.

Benefits

• Simple: Streamlined, user-friendly processes

• Fast: Short mixing time

• Reliable: No product temperature increases during mixing

• Reduced energy consumption: Low power installation (e.g., 75 kW on 3,000-litre mixer)

• Durable: Minimized wear of tools and mixing chamber

• Safe: Easy cleaning and maintenance

Technical Specifications

Description
The WBH Lithium Mixer is designed to deliver high-quality results while minimizing the risk of product contamination. It offers easy cleaning and maintenance, quick mixing times, and low energy consumption. Built for durability, the mixer comes with a wide range of specialized abrasion and corrosion-resistant coatings and linings. The WBH Lithium Mixer is a long-term investment, making it an excellent choice for industrial-scale operations, ensuring reliable performance for years to come.

Function
The WBH Lithium Horizontal Single-Shaft Industrial Batch Mixer operates on the principle of mechanical fluidization. The unique shape, positioning, and rotational speed of the mixing tools create a centrifugal vortex motion, allowing materials to be projected in three dimensions and merge seamlessly. This design ensures that ingredients with varying particle sizes and bulk densities are mixed with high precision and efficiency, achieving optimal results in the shortest possible time.

Features

• Capacity: 75 ~ 25,000 litres (2.6 ~ 880 cu ft) per batch

• Mixing ratio: 1/100,000

• Optional liquid addition

• Manufactured from 304L / 316L stainless steel

• Pneumatic control panel

• End bearing assemblies with patented shaft seals for battery powder

• Adjustable, replaceable mixing tools

• Various inlet options

• Heavy-duty mixing chamber manufactured from 304L / 316L stainless steel

• Inspection door for easy access to mixer interior

• Flush discharge valve

• Choppers: Tulip-type and Blade-type

• Wear and corrosion-resistant ceramic-tile chamber lining

• Special outlet with cleaning system

• Specially coated ploughshare tools

Contact Us

...for more questions and specifications regarding industrial mixers and equipment for handling powders, bulk solids and liquids.

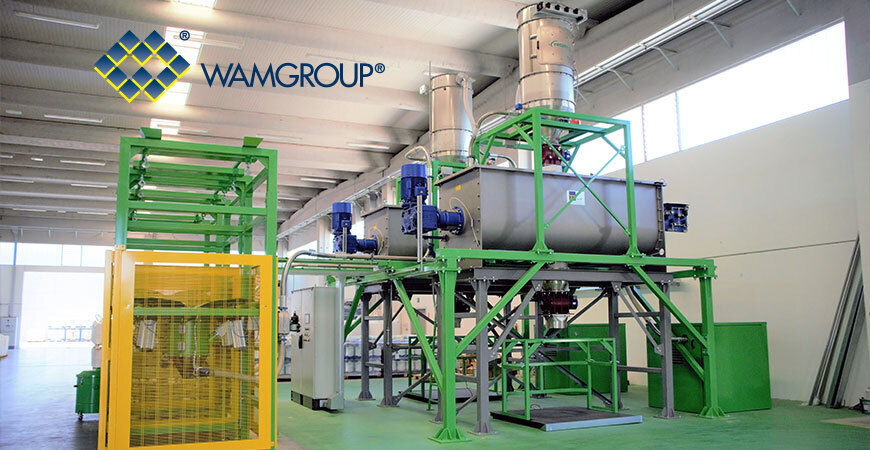

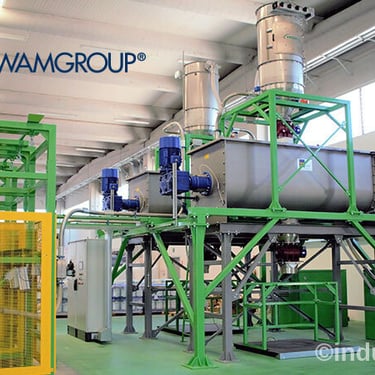

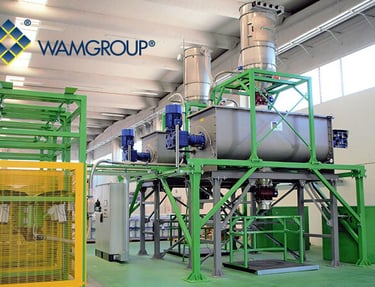

WBR Series

Single-Shaft Industrial Ribbon Blenders

Keeping mixtures homogeneous, the gentle way.

• Capacity: 20 ~ 3,900 litres per batch

• Drive unit: 220/240 – 380/420 V, 50 Hz; 440/480 V, 60 Hz

• Double ribbon spiral

• Air or gas-purged end bearing assemblies

• Central outlet

• Sample device pre-equipment

• Chamber and rotor: Carbon steel, 304L or 316L stainless steel

• Machine: Fully assembled and tested

• Revolution counter and temperature probe pre-equipment

• Drain plug

• Pneumatic control panel pre-equipment

Technical Specification

Explore our detailed product specifications and enhance your technical understanding of equipment for handling and mixing powders, bulk solids, and liquids in industrial applications.

WBR Industrial Ribbon Blenders provide an optimal solution, meeting market demands for quality, ease of maintenance, and advanced mixing technology. Thanks to the use of proven standard components, MAP® can offer an attractive price without compromising quality.

Benefits

• Prevents product degradation

• Ideal for blending fragile and temperature-sensitive products

• High mixing homogeneity

• Minimum possible residue

• Reduced operating costs

• Low power consumption

• Easy and quick installation

Available Options Upon Request

• Single/double top inspection hatch

• Large inspection hatch and easy-to-clean interior

• Trough cover with inlet spouts

• Cleaning system pre-equipment (CIP)

• Pneumatic control panel

• Food-grade paint coating

• Mirror polishing

• Specialised WAM® gear motor

• 304L / 316L stainless-steel internal polishing

Technical Specifications

Description
WBR Industrial Ribbon Blenders are ideal for mixing dry powders, granules, or short fibres, as well as for moistening, agglomerating, and granulating materials. They are also suitable for adding small quantities of liquids or low-viscosity pastes.
In the food industry, the WBR is particularly effective for mixing fragile or temperature-sensitive products in a gentle, non-invasive manner.

Function
The mixing tool features a slowly rotating horizontal single shaft with two counter-rotating ribbon screws. The outer ribbon moves the material toward the center, while the inner one moves it in the opposite direction.
This design is ideal for producing high-quality mixtures that maintain the physical properties of sensitive materials.

Features

• Capacity: 20 ~ 3,900 litres per batch

• Drive Unit: 220/240 – 380/420 V, 50 Hz; 440/480 V, 60 Hz

• Double Ribbon Spiral

• Air or Gas-Purged End Bearing Assemblies

• Central Outlet

• Sample Device Pre-Equipment

• Chamber and Rotor: Manufactured from carbon steel, 304L, or 316L stainless steel

• Fully Assembled and Tested Machine

• Revolution Counter and Temperature Probe Pre-Equipment

• Drain Plug

• Pneumatic Control Panel Pre-Equipment

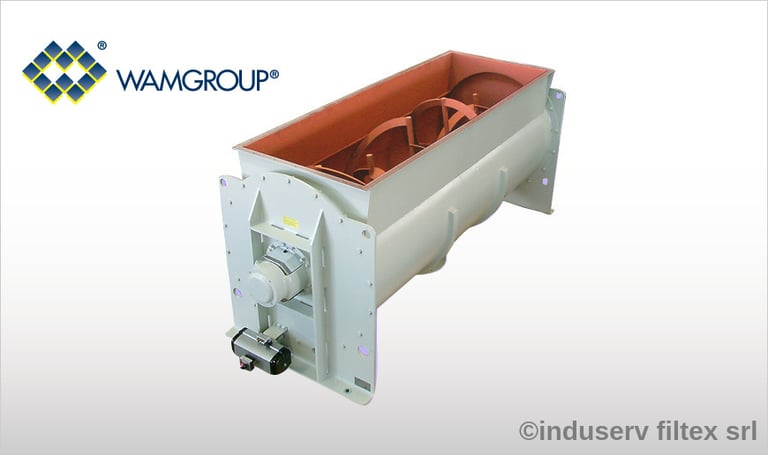

WBN Series

Tubular Batch-Type Industrial Ribbon Blenders

The WBN model keeps mixtures homogeneous, ideal for a wide range of materials and batch sizes.

• Capacity: 10 ~ 20,000 litres per batch

• Mixing time: 5 ~ 15 min

• End bearing assemblies with air or nitrogen-purged shaft seals or grease sealing

• Heavy-duty mixing chamber made from carbon steel or 304L / 316L stainless steel

• Stainless steel surface finish: grit silking, mirror polishing, glass bead blasting

• Large hopper inlet or multiple round inlet spouts

Technical Specification

Explore our detailed product specifications and enhance your technical understanding of equipment for handling and mixing powders, bulk solids, and liquids in industrial applications.

The WBN Batch-Type Industrial Ribbon Blender, featuring a slowly rotating single shaft with a double counter-pitch ribbon screw, is the perfect machine for achieving high-quality mixtures of fragile materials while preserving the product's physical properties.

Benefits

• Low maintenance

• Durable machine

• Power rating: Adapted to the specific application

• Mixing expertise: Access to know-how and test facilities

Available Options Upon Request

• Additional liquid supply equipment

• Pneumatic sampling device

• Pneumatic control panel

• Jacketed mixing chamber for heating or cooling

Technical Specifications

Description
Batch-type WBN Industrial Ribbon Blenders feature a horizontal, single-shaft double counter-pitch ribbon screw housed within a tubular mixing drum. The design includes a central or rectangular inlet port running the full length of the drum, a central discharge outlet, a venting spout, and two end plates with integrated air or gas-purged shaft seals. The system is powered by a drive unit with complete power transmission.

Function
The outer ribbon moves the material from both ends of the vessel toward the center, while the inner ribbon directs it toward both ends, creating a convective mixing action. This results in gentle processing of the product within a relatively short mixing time.
Typically, Batch-type WBN Industrial Ribbon Blenders are used for mixing dry PVC, powders, granules, as well as liquids and low-viscosity pastes.

Features

• Capacity: 10 ~ 20,000 litres per batch

• Mixing time: 5 ~ 15 min

• End bearing assemblies: Air or nitrogen-purged shaft seals or grease sealing options

• Heavy-duty mixing chamber: Made from carbon steel or 304L / 316L stainless steel

• Stainless steel surface finishes: Grit silking, mirror polishing, or glass bead blasting

• Inlet options: Large hopper inlet or multiple round inlet spouts

Contact Us

...for more questions and specifications regarding industrial mixers and equipment for handling powders, bulk solids and liquids.

Industry Sectors and Applications

Explore the diverse industry sectors and applications where our products provide reliable, efficient, and cost-effective solutions.

From manufacturing and agriculture to specialized industrial equipment, the wide range of high-quality products and solutions supplied by Micromix is designed to meet the unique demands of each sector, ensuring optimal performance and versatility.

• Building & Construction: DryMix Building Materials Processing, Chemical Ad-Mixtures for Building & Construction, Brick & Roof Tile Production, Marble Processing

• Feed & Food: Animal Feed Milling, Animal Feed Additives Processing, Fish Food Production, Pet Food Processing, Biscuit Processing

• Plastics & Chemicals: Plastics Raw Material Processing, Rubber Processing, Rubber & Plastics Recycling, Fertilizer, Pesticide, and Insecticide Processing, Pharmaceutical Processing, Paint, Varnish, and Resin Processing

• Heavy Industries: Cement, Lime, Gypsum, Minerals, and Refractory Products Processing, Crushing, Mining, Quarrying, Screening, and Micronizing Plants, Oil & Gas Extraction, Foundries, Iron and Steel Mills, Coking Plants, Power Plants (Fly-Ash Handling)

• Renewable Energy: Biomass & Biogas Digestate from Organic Household Waste, Wood Biomass in Chip Form

• Plants & Machinery: Lime Dosing, Dosing Plants, Mixing Plants, Packaging Plants, Battery Production, Wood or Cork Working Machinery, Tobacco Processing

• Environmental Technology: Industrial Wastewater Treatment (including Sludge Treatment), Abattoirs (Slaughterhouses), Beverage Industry Wastewater, Food Processing & Catering Wastewater, Fruit & Vegetable Processing Wastewater, Pulp & Paper Processing, Starch & By-products Processing, Tanneries, Dyeing Works, Plastics Recycling Industry Wastewater, Municipal Wastewater Treatment (including Sludge Treatment), Industrial Solid Waste Handling & Treatment, Animal By-products Handling & Processing

• Building & Construction: Mixing and blending of dry building materials, Chemical admixtures for concrete and mortar, Tile and brick production blending, Marble processing and mixing

• Feed & Food: Animal feed mixing and additives incorporation, Fish food production and ingredient blending, Pet food mixing and supplement incorporation, Biscuit and bakery products mixing

• Plastics & Chemicals: Blending of raw materials for plastic production, Rubber processing and additives incorporation, Recycling of plastics and rubber materials, Fertilizer, pesticide, and insecticide mixing, Pharmaceutical ingredient blending, Resin, paint, and varnish production

• Heavy Industries: Cement, lime, gypsum, and mineral processing, Raw material and micronizing blending for mining industries, Fly ash handling in power plants, Steel, iron, and coking plant material blending

• Renewable Energy: Biomass & Biogas digestate processing, Wood biomass processing in chip form

• Plants & Machinery: Lime dosing for chemical applications, Integration into dosing, mixing, and packaging plants for various products, Wood and cork processing and tobacco industry applications

• Environmental Technology: Wastewater treatment and sludge processing, Treatment of industrial effluents from abattoirs and beverage industries, Fruit and vegetable waste water treatment, Pulp and paper processing waste management, Treatment of industrial waste and animal by-products

INDUSTRY SECTORS

APPLICATIONS

Product Features

Explore the key features of our product range, designed to ensure efficiency and reliability across a variety of applications.

Customer Success Stories

Explore customer experiences with our product range and innovative solutions, driving success across diverse industries.

micromix_WBH-Lithium_EN_Wam Group.pdf

Explore More Products

You May Be Interested In

Peristaltic pumps

self-priming, reversibility, easy and quick maintenance and sterilization, no stress to the pumped liquid...

Peristaltic pump tubing

range of four different products to suit all possible applications and allows peristaltic pump users wide versatility with all chemicals...

Tension/compression load cell

ideal for tanks, hoppers, weighing belts, asphalt and concrete plants, force measurement...
